113-Piece Jig Set For Vision Measuring Systems
BDT 343,100/-
Product Details
Brand: INSIZE
Model: ISY-700
Country Of Origin: China
Features:
Comprehensive 113-piece kit for ultimate versatility
Organized acrylic storage tray included
Includes a large 300x200mm M4 base plate
Wide variety of stand diameters and heights
Features fine adjustment stands for precise positioning
Specialized supports for complex or sliced parts
Durable, high-quality construction for long-term use
| Total Pieces: | 113 |
| Base Plate Size: | 300Ã200Ã12mm (1 piece) |
| Thread Size: | M4X0.7 |
| Includes: | Assorted stands, clips, support heads, positioning plates, wrench, and acrylic tray. |

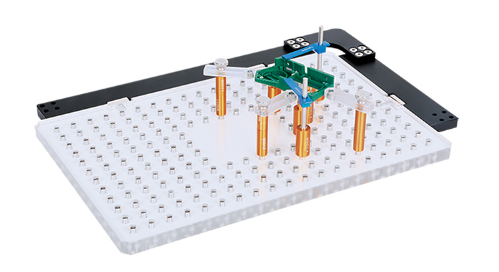

The INSIZE ISY-700 113-Piece Jig Set is a comprehensive, professional-grade fixturing solution designed specifically to securely hold and position workpieces during inspection on Vision Measuring Systems. Organized in a custom-fit acrylic tray, this extensive kit includes a wide variety of components to tackle virtually any part geometry.
The set features a robust 300x200x12mm acrylic base plate with an M4 threaded hole pattern for secure anchoring. It includes a vast array of stands in multiple diameters (Ø6mm to Ø12mm) and heights, specialized stands for slice parts, fine adjustment stands, and spring stands. Additionally, it provides a diverse selection of clips, spherical support heads, sliding plates, and a square support system to accommodate complex and irregular workpieces. This all-in-one kit ensures quick, stable, and repeatable setups, maximizing the efficiency and accuracy of your optical metrology processes.
INSIZE ISY-700 Vision Measuring Jig Set – 113-Piece Workpiece Fixturing Kit
Master any vision measurement challenge with the INSIZE ISY-700 113-Piece Jig Set. Designed for metrology labs, quality control departments, and manufacturers utilizing vision measuring systems, this comprehensive modular fixture kit provides all the necessary components to securely hold and accurately position complex workpieces.
Key Features & Benefits:
-
Massive Component Variety: With 113 pieces, you have the ultimate flexibility to build customized support structures. It includes multiple stands (Ø6mm, Ø9mm, Ø12mm), fine adjustment stands, and specialized stands for slice parts.
-
Complete Support System: Features spherical support heads, L-shaped positioning plates, sliding support plates, and a square support base to stabilize irregular geometries.
-
Solid Foundation: Includes a durable 300x200x12mm acrylic base plate featuring an M4 threaded hole grid, providing a secure anchor for your entire fixture assembly.
-
Precision & Repeatability: Designed to hold parts firmly during non-contact optical measurement, minimizing errors and ensuring repeatable results.
-
Organized Storage: All components are neatly arranged in a custom-cut acrylic tray, ensuring parts are protected and easy to locate.
-
Versatile Clips: Comes with various clip sizes and clip stands to apply gentle but secure pressure on delicate parts.
