ACL-7000 ANALOG CIRCUIT LABORATORY

Product Details

Brand: MCP
Model: ACL-7000
Country Of Origin: China

Feature

• Six circuit boards form 22 experiments

• Ideal tool for learning the basics of analog circuits

• Step‑by‑step exercises and application with experiment manual

• Integrated training system, with complete instruction

• Combination with M21‑7000 digital‑analog training system as main unit

• Expandability and flexibility of experiments greatly increased by large breadboard

• Boards can be changed easily

The ACL‑7000 analog circuit laboratory is a comprehensive and self‑contained system suitable for tuition and experimentation with a range of analog electronics circuits. All necessary equipment such as power supply, signal generator, switches and displays are built‑in on the main unit. The 6 circuit boards cover a wide variety of essential topics in the field of analog electronics. It is a time and cost saving device for both students’ experiment and researchers interested in developing and testing circuit prototypes.

Specification

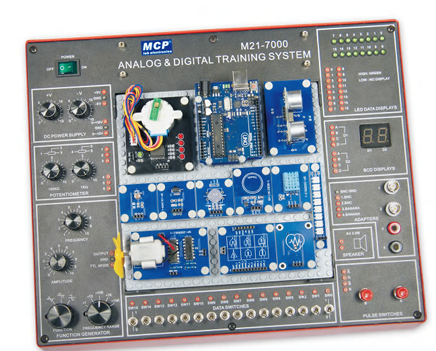

I. MAIN UNIT M21‑7000

1. SOLDERLESS BREADBOARD: 2820 tie points, nickel plated contacts, supports DIP sizes and AWG #22–30 wires. Replaceable and connectable with demonstration panel.

2. DC POWER SUPPLY: +5V 1A, –5V 1A fixed outputs 0–+15V 1A, 0––15V 1A variable outputs

3. POTENTIOMETERS: VR1 = 1kΩ VR2 = 100kΩ

4. FUNCTION GENERATOR: Frequency ranges: 1Hz–10Hz, 10Hz–100Hz, 100Hz–1kHz, 1kHz–10kHz, 10kHz–100kHz Amplitude: Sine/Triangle/Square 0–10 Vpp variable, TTL 4 Vpp

5. SIXTEEN BITS DATA SWITCHES: 16 toggle switches with HI/LO logic outputs

6. TWO PULSE SWITCHES: Debounced pushbuttons with outputs (A, A̅, B, B̅)

7. SPEAKER: 2.5 inch, 8Ω, 0.5W

8. FOUR CHANNEL ADAPTOR: Banana sockets and BNC jacks, changeable pins

9. TWO DIGITS OF 7 SEGMENT LED DISPLAY: Numerical output display

10. SIXTEEN BITS LED DISPLAY: 16 red LEDs for HI/LO logic indication

II. CIRCUIT BOARDS (DTS‑011 to DTS‑016)

• DTS‑011: Basic amplifier circuit

• DTS‑012: Operational amplifier circuit

• DTS‑013: Oscillator circuit

• DTS‑014: Various circuit 1

• DTS‑015: Various circuit 2

• DTS‑016: Regulator circuit

III. Experiments (22 total) Amplifiers, filters, oscillators, regulators, waveform conversion, voltage/current conversion, power amplifiers, rectifiers, etc.

IV. GENERAL Accessories: Power cord, pin leads (10cm ×20, 20cm ×20), user manual Input Voltage: 110–127VAC ±10% 60Hz / 220–240VAC ±10% 50Hz switchable Dimensions: Main unit 334×95×258mm, Circuit board 165×170mm Weight: Main unit 5.4kg, Circuit board 0.45kg
