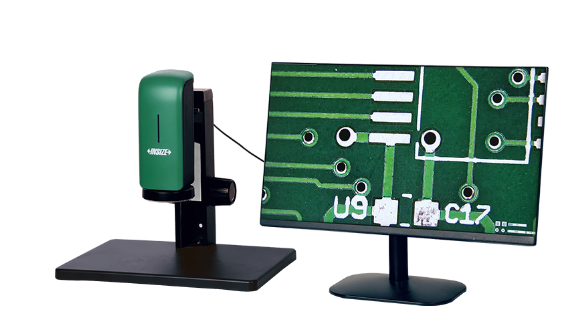

Auto Focus Digital Microscope (Advanced Type)
BDT 0/-
Product Details
Brand: INSIZE
Model: 5319-AF290
Country Of Origin: China
Features:
Auto focus camera
Take pictures and videos
Built-in measuring software
Automatic exposure and white balance
Brightness, contrast ratio, gain are adjustable
Display actual magnification
Digital magnification
Shortcut keyboard operation
Display cross hair and gridline (blue/green/red/yellow/black/white colors)
| Sensor: | 1/2.8" CMOS, 2M Pixel |
| Resolution: | 1920Ã1080 (50/60fps) |
| Magnification: | 27.4X~163X |
| Measuring Accuracy: | Âą0.02mm |
| Dimensions: | 600Ã280Ã390mm |
| Net Weight: | 6.5kg |
The INSIZE 5319-AF290 Auto Focus Digital Microscope (Advanced Type) is a high-performance, standalone optical inspection system designed for rapid and accurate dimensional analysis. Equipped with a built-in camera, a motorized zoom lens, and an included 21.5-inch LCD monitor, it operates entirely without a computer, making it an ideal turnkey solution for quality control and manufacturing environments.
What sets the AF290 apart is its advanced automation: it features auto focus, motorized zoom (0.8X to 4.76X), and motorized light control, ensuring optimal image clarity at the push of a button. A major workflow enhancement is the "No Calibration After Zoom" feature, which maintains measurement accuracy (±0.02mm) even as magnification changes. The system is bundled with a dedicated shortcut keyboard for rapid access to functions like image capture, AF/MF switching, and zoom presets. The included software offers a comprehensive suite of measurement tools, customizable multi-color crosshairs and gridlines, and the ability to save data directly to the included USB drive.
INSIZE 5319-AF290 Auto Focus Digital Microscope – Advanced Standalone Inspection System
Streamline your quality control process with the INSIZE 5319-AF290 Auto Focus Digital Microscope. Designed for modern manufacturing, electronics inspection, and precision engineering, this advanced standalone system combines high-resolution optics with motorized automation to deliver fast, accurate, and hands-free measurement capabilities.
Key Features & Benefits:
-
Fully Motorized Automation: Experience the convenience of auto focus, motorized zoom (0.8X to 4.76X), and motorized light control. The system automatically adjusts to provide the perfect focus and illumination for your workpiece.
-
No Calibration After Zoom: A standout feature is the ability to zoom in and out while maintaining accurate measurements (±0.02mm) without needing to recalibrate the system, drastically reducing inspection time.
-
Standalone 21.5" LCD Operation: The built-in measuring software outputs directly to the included 21.5" LCD monitor. Operate the entire system with the mouse and the dedicated shortcut keyboard—no external computer is needed.
-
Intuitive Shortcut Keyboard: Navigate complex tasks with ease using the included keyboard. Features include quick capture, video recording, image freeze, AF/MF switching, mirror/flip, and dedicated zoom presets.
-
High-Resolution Imaging: A 1/2.8" CMOS sensor captures crisp 1920x1080 resolution at 50/60fps, ensuring every detail is visible.
-
Comprehensive Measurement Software: The system includes full measuring tools, assist tools, automatic exposure, and white balance, plus the ability to overlay multi-colored crosshairs and gridlines.
