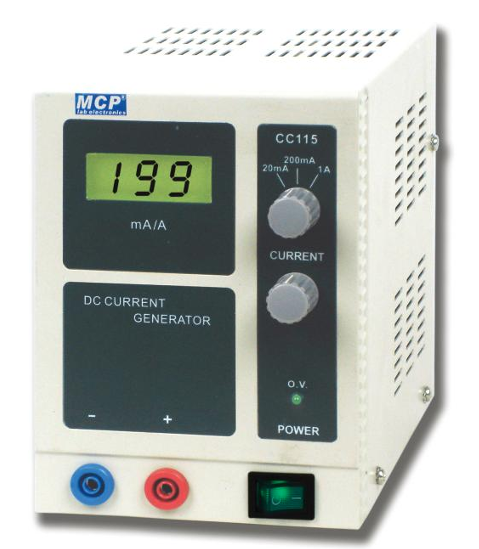

CC115 DC CURRENT GENERATOR
BDT 17,307/-
Product Details
Brand: MCP
Model: CC115
Country Of Origin: China
Features
-
Constant current output
-
Continuously adjustable output current
-
Short circuit and over voltage protection
-
3‑digit LCD current meter
| Output current: | 0–1A (3 steps) |
| Maximum voltage: | 15V |
| Resolution: | 100 µA (0–20mA) 1mA (20–200mA) 10mA (200mA–1A) |
| Load regulation: | 1% |
| Line regulation: | 1% |
| Display: | 3‑digit LCD with backlight |
| nput voltage: | 110–127VAC ±10% 60Hz 220–240VAC ±10% 50Hz (switchable) |
| Dimensions: | 108(W) × 154(H) × 240(D) mm |
| Weight: | 2kg |
A compact constant-current source that provides a continuously adjustable current from 0 to 1 A (in three ranges), with a maximum voltage of 15 V.
Purpose
To deliver a stable and adjustable constant current for testing, driving, and characterizing electronic components and circuits that require controlled current rather than voltage.
Where to use it
Electronics laboratories and workshops
Component testing and characterization
Educational electronics experiments
Circuit development and troubleshooting benches
How to use it
Select the appropriate current range (0–20 mA, 20–200 mA, or 200 mA–1 A).
Adjust the output current continuously within the selected range.
Connect the load — the unit maintains the set current (regulation 1 %).
Monitor the current on the 3-digit backlit LCD display.
Built-in short-circuit and over-voltage protection safeguards both the supply and the connected circuit.
It is designed for general laboratory and educational use where a reliable, adjustable constant-current source up to 1 A is needed.
The MCP CC115 DC Current Source (CC Series) is a precision laboratory instrument designed for accurate current generation and testing. With continuously adjustable output up to 1A, high‑resolution steps, and built‑in protections against short circuit and over voltage, it ensures safe and reliable operation. The 3‑digit LCD display with backlight provides clear monitoring, while its compact design makes it suitable for laboratories, calibration facilities, and industrial electronics testing. Switchable input voltage options allow flexible use worldwide.
