CHAMFER GAGE
BDT 17,847/-
Product Details
Brand: INSIZE
Model: 1267-6
Country Of Origin: China
Features:
Measure 30°/45°/60° chamfer dimension
Graduation: 0.02mm
Made of stainless steel
Satin chrome plated reading surface
| Type: | Chamfer Gauge |
| Range: | 0-10mm |
| Accuracy: | ±0.06mm |
| Graduation: | 0.02mm |
| Chamfer Angle (α): | 45° |
| ØD (Base Diameter): | 7mm |
| Material: | Stainless Steel |
| Finish: | Satin Chrome Plated |

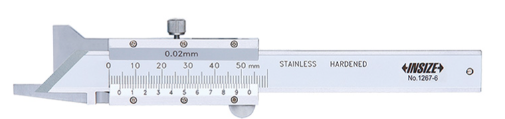

The INSIZE 1267-6 Chamfer Gauge is a specialized, precision measuring instrument designed to accurately measure 45° chamfer dimensions on machined parts. As part of the 1267 Series, this analog gauge features a V-shaped base that rests securely on the chamfer to provide a direct reading of its width or length. Made of durable stainless steel with a satin chrome plated reading surface for glare-free visibility, it offers a measuring range of 0-10mm with a fine graduation of 0.02mm and an accuracy of ±0.06mm. It is designed for both external and internal chamfer measurements (provided the internal diameter is larger than the gauge's ØD base). This tool is essential for machinists, toolmakers, and quality control inspectors.
INSIZE 1267-6 Chamfer Gauge – 45° Angle Measurement, Stainless Steel
Measure chamfer dimensions quickly and accurately with the INSIZE 1267-6 Chamfer Gauge, a specialized analog measuring tool designed for machinists, toolmakers, and quality control professionals. This gauge is specifically engineered to measure 45° chamfers on both external and internal edges, providing a direct and reliable reading.
Key Features & Benefits:
-
Specialized Chamfer Measurement: Designed to accurately measure 45° chamfer dimensions (length/width of the angled surface).
-
High Precision: Features a fine graduation of 0.02mm and an accuracy of ±0.06mm for reliable results.
-
Versatile Application: Suitable for measuring both external chamfers and internal chamfers (where the internal diameter is larger than the Ø7mm base).
-
Durable Construction: Made of high-quality stainless steel to withstand the rigors of a machine shop environment.
-
Glare-Free Reading: The satin chrome plated reading surface ensures clear, easy-to-read measurements.
-
Multiple Models Available: The 1267 Series also includes models for 30° (1267-63) and 60° (1267-66) chamfers to suit various specifications.
-
Analog Operation: Requires no batteries and is immune to electromagnetic interference.
