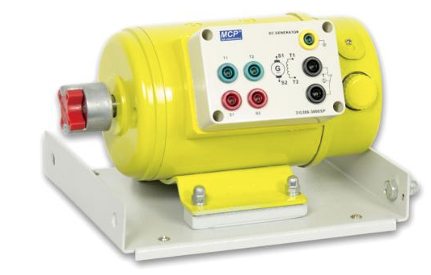

DDG300-3000SP DC GENERATOR
BDT 39,116/-
Product Details
Brand: MCP
Model: DDG300-3000SP
Country Of Origin: China
Main Advantages
Separate excitation for precise control
High-speed 3000rpm performance
Stable 220VDC output
Powerful 250W output
Compact and robust construction
Easy wiring with labeled terminals
Suitable for education and research
| Type: | DC Generator |
| Excitation Voltage: | 0~220VDC |
| Excitation Current: | 0.14A |
| Max. Output Voltage: | 220VDC |
| Max. Output Power: | 250W |
| Max. Rotate Speed: | 3000rpm |
| Shaft Height: | 75mm |
| Dimensions: | 240 x 180 (190) x 140 mm |
| Weight: | 8.5kg |
The MCP DG300-3000SP DC Generator is a high-speed, industrial-grade generator designed for reliable DC power generation with precise control. Ideal for industrial, commercial, and educational applications, it features separate excitation windings, allowing independent control of the field and armature for accurate voltage regulation. The DG300-3000SP operates on an excitation voltage of 0~220VDC with an excitation current of 0.14A, delivering a maximum output voltage of 220VDC and a maximum output power of 250W. It achieves a high maximum rotate speed of 3000rpm. The generator features a 75mm shaft height and compact dimensions of 240 x 180 (190) x 140 mm, weighing 8.5kg, with clearly labeled terminals (T1, T2, and others) for straightforward wiring.
MCP DG300-3000SP DC Generator – 250W, 220VDC, 3000rpm
Generate reliable DC power with high-speed precision using the MCP DG300-3000SP, a powerful DC generator designed for controlled voltage output and dependable performance. Ideal for industrial, commercial, and educational applications, this generator combines separate excitation construction with a compact, durable design.
Key Features & Benefits:
-
Separate Excitation Design: Allows independent control of the field and armature for precise voltage regulation.
-
High-Speed Performance: Achieves a high maximum rotate speed of 3000rpm.
-
Stable DC Output: Delivers a maximum output voltage of 220VDC with a maximum output power of 250W.
-
Wide Excitation Range: Operates on 0~220VDC excitation voltage with a low excitation current of 0.14A.
-
Compact & Robust Design: Features a 75mm shaft height and dimensions of 240 x 180 (190) x 140 mm, weighing 8.5kg.
-
Easy Wiring: Equipped with clearly labeled terminals (T1, T2, and others) for straightforward connection.
-
Industrial-Grade Construction: Built to withstand demanding environments in industrial, commercial, and educational settings.
