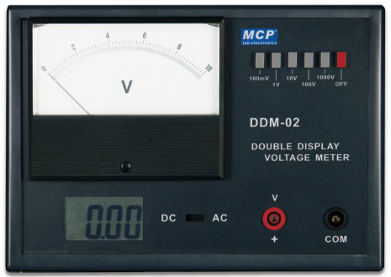

DDM-2 DOUBLE DISPLAY VOLTAMETERS
BDT 9,996/-
Product Details
Brand: MCP
Model: DDM-2
Country Of Origin: China
Features
Useful for both high-sensitivity and wide-range measurements
Voltage: 100mV,9V 10V 100b, 1000V
Current. 1mA, 10mA, 10amA, IA. 10A
Long scale and mirrored for easy accurate analog read out
Large 1000 counts LCD for lar e digital read out
Slope lay up for easy and stable operation
| Analog: |
Permanent magnet moving coil type AC Rectifier type 1.5 Class 11 Omm scale length, deflection angle 900 Bladed needle (black) |
| Digital: |
LCD DC .5%+2digits DCVO.5%+ Idigits-O.8%+1digits ACVI %+2digits 20mm digit height |
| measuring range (ACIDC): | 100mV, 1V, 10V, 100V, 1000V |
| Operating position: | Horizontal(70 slope) |
| Rated frequency: | 50/60Hz |
| Battery: | 6F22, 9 V |
| Operating environment: | 0–40 °C, 25–80% RH |
| Storage environment: | –10–50 °C, 25–80% RH |
| Dimensions: | ~240 × 170 × 90 mm |
| Weight: | ~0.6 kg |
The MCP DDM Series Double Display Meters are innovative hybrid instruments designed for precise electrical measurement. Featuring both an analog needle gauge and a digital LCD, they deliver fast visual feedback with exact numerical accuracy. The DDM‑01 model measures AC/DC current across six ranges (1 mA to 10 A), while the DDM‑2 variant covers voltage ranges from 100 mV to 1000 V. With mirrored scales, slope‑lay design, and robust safety features, these meters are ideal for laboratories, educational setups, and professional testing environments where versatility and reliability are essential.
The MCP DDM Series Double Display Meters combine analog and digital technology for versatile electrical measurement. With ranges covering both voltage and current in AC/DC, these instruments provide the clarity of a needle gauge alongside the precision of a digital LCD. Their slope‑lay design ensures stable operation, while dual insulation and safety sockets guarantee secure use in laboratories and training environments.
