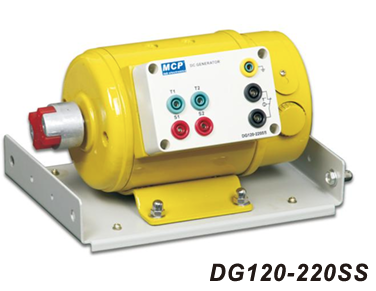

DG120-220SS DC GENERATOR
BDT 35,092/-
Product Details
Brand: MCP
Model: DG120-220SS
Country Of Origin: China
Main Advantages
Separate excitation for precise control
Stable DC220V output
Compact and robust construction
Easy wiring with labeled terminals
Reliable 100W output
Durable industrial design
Suitable for education and research
| Type: | DC Generator |
| Excitation Voltage: | DC220V |
| Excitation Current: | 0.13A |
| Max. Output Voltage: | DC220V |
| Max. Output Power: | 100W |
| Max. Rotate Speed: | 1500rpm |
| Shaft Height: | 63mm |
| Dimensions: | 230 x 130 x 150 mm |
The MCP DG120-220SS DC Generator is a compact, high-performance generator designed for reliable DC power generation in industrial, commercial, and educational applications. It features separate excitation windings, allowing independent control of the field and armature for precise voltage regulation. The DG120-220SS operates on an excitation voltage of DC220V with an excitation current of 0.13A, delivering a maximum output voltage of DC220V and a maximum output power of 100W. It achieves a maximum rotate speed of 1500rpm. The generator features a 63mm shaft height and compact dimensions of 230 x 130 x 150 mm, with clearly labeled terminals (T1, T2, and others) for straightforward wiring.
MCP DG120-220SS DC Generator – 100W, 220VDC, 1500rpm
Generate reliable DC power with precision using the MCP DG120-220SS, a compact DC generator designed for controlled voltage output and dependable performance. Ideal for industrial, commercial, and educational applications, this generator combines separate excitation construction with a durable, space-saving design.
Key Features & Benefits:
-
Separate Excitation Design: Allows independent control of the field and armature for precise voltage regulation.
-
Stable DC Output: Delivers a maximum output voltage of DC220V with a maximum output power of 100W.
-
Reliable Excitation: Operates on DC220V excitation voltage with a low excitation current of 0.13A.
-
Compact & Robust Design: Features a 63mm shaft height and dimensions of 230 x 130 x 150 mm, suitable for space-constrained applications.
-
Easy Wiring: Equipped with clearly labeled terminals (T1, T2, and others) for straightforward connection.
-
Industrial-Grade Construction: Built to withstand demanding environments in industrial, commercial, and educational settings.
