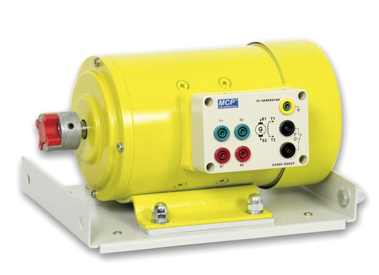

DG600-3000SP DC GENERATOR
BDT 48,251/-
Product Details
Brand: MCP
Model: DG600-3000SP
Country Of Origin: China
Main Advantages
Separate excitation for precise control
High-speed 3000rpm performance
Powerful 600W output
Stable 220VDC output
Heavy-duty and robust construction
Easy wiring with labeled terminals
Suitable for education and research
| Type: | DC Generator |
| Excitation Voltage: | 0~220VDC |
| Excitation Current: | 0.14A |
| Max. Output Voltage: | 220VDC |
| Max. Output Power: | 600W |
| Max. Rotate Speed: | 3000rpm |
| Shaft Height: | 80mm |
| Dimensions: | 280 x 180 (200) x 150 mm |
| Weight: | 13.5kg |
The MCP DG600-3000SP DC Generator is a high-speed, powerful DC generator designed for reliable DC power generation with precise control. Ideal for industrial, commercial, and educational applications, it features separate excitation windings, allowing independent control of the field and armature for accurate voltage regulation. The DG600-3000SP operates on an excitation voltage of 0~220VDC with an excitation current of 0.14A, delivering a maximum output voltage of 220VDC and a maximum output power of 600W. It achieves a high maximum rotate speed of 3000rpm. The generator features an 80mm shaft height and dimensions of 280 x 180 (200) x 150 mm, weighing 13.5kg, with clearly labeled terminals (T1, T2, and others) for straightforward wiring.
MCP DG600-3000SP DC Generator – 600W, 220VDC, 3000rpm
Generate reliable DC power with high-speed precision using the MCP DG600-3000SP, a powerful DC generator designed for controlled voltage output and dependable performance. Ideal for industrial, commercial, and educational applications, this generator combines separate excitation construction with a robust, heavy-duty design.
Key Features & Benefits:
-
Separate Excitation Design: Allows independent control of the field and armature for precise voltage regulation.
-
High-Speed Performance: Achieves a high maximum rotate speed of 3000rpm.
-
Powerful DC Output: Delivers a maximum output voltage of 220VDC with a maximum output power of 600W.
-
Wide Excitation Range: Operates on 0~220VDC excitation voltage with a low excitation current of 0.14A.
-
Robust & Heavy-Duty Design: Features an 80mm shaft height, dimensions of 280 x 180 (200) x 150 mm, and a weight of 13.5kg.
-
Easy Wiring: Equipped with clearly labeled terminals (T1, T2, and others) for straightforward connection.
-
Industrial-Grade Construction: Built to withstand demanding environments in industrial, commercial, and educational settings.
