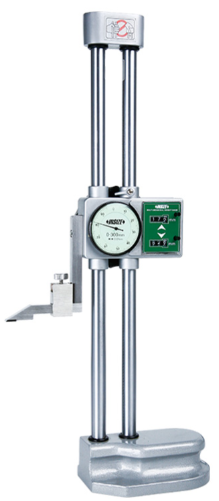

DIAL HEIGHT GAGE
BDT 50,333/-
Product Details
Brand: INSIZE
Model: 1351-300
Country Of Origin: China
Features:
Dial indicator graduation: 0.01mm
One counter reads in the plus direction and another in the minus direction, so incremental measurement can be made in either direction
Carbide tipped scriber
Made of stainless steel (except the base)
With driving wheel
With dial test indicator holder
Supplied with dust cover
| Type: | Dial Height Gauge |
| Range: | 0-300mm |
| Accuracy: | ±0.04mm |
| Graduation: | 0.01mm |
| Material: | Stainless Steel (except base) |
| Dimensions (L/a1/a2/b/c/ØD): | 475mm / 135mm / 43mm / 84mm / 33mm / 15mm |
The INSIZE 1351-300 Dial Height Gauge is a robust, professional-grade precision measuring instrument designed for accurate height measurement, scribing, and layout work. Featuring a 0.01mm graduated dial indicator, it allows for quick, visual readings. A standout feature is its dual-counter mechanism, which enables incremental measurement in either the plus or minus direction, making complex setups much easier. Constructed primarily from stainless steel (excluding the base for stability) and equipped with a carbide-tipped scriber, this gauge is built for longevity and precision. It includes a dial test indicator holder, a convenient driving wheel on the back for smooth adjustments, and is supplied with a dust cover for protection. An optional protractor clamp (2372-CLAMP) is available for angular measurements.
INSIZE 1351-300 Dial Height Gauge – 0.01mm Precision, Dual Counter, Stainless Steel
Achieve accurate height measurement and layout work with the INSIZE 1351-300 Dial Height Gauge, a professional-grade measuring tool designed for machinists, toolmakers, and quality control inspectors. Featuring a high-precision 0.01mm dial indicator and a unique dual-counter system, this gauge offers exceptional control and versatility for complex inspection tasks.
Key Features & Benefits:
-
Dual-Direction Counter: Features two counters—one reading in the plus direction and one in the minus direction—allowing for easy incremental measurements in either direction.
-
High Precision: The dial indicator has a fine graduation of 0.01mm for highly accurate readings.
-
Durable Construction: Made of high-quality stainless steel (except for the base) to withstand the rigors of a machine shop environment.
-
Carbide Tipped Scriber: Includes a durable carbide scriber for marking and layout tasks.
-
Complete Accessory Kit: Comes with a dial test indicator holder, a driving wheel on the back for smooth slider movement, and a protective dust cover.
-
Optional Protractor Clamp: The 2372-CLAMP is available as an optional accessory for clamping protractors for angular measurements.
-
Analog Operation: Requires no batteries and is immune to electromagnetic interference.
