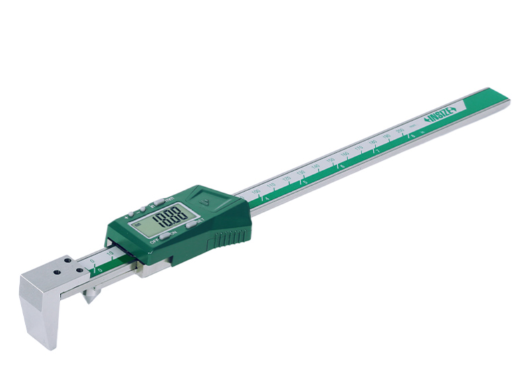

DIGITAL BACK-JAW EDGE TO CENTER CALIPER
BDT 51,074/-
Product Details
Brand: INSIZE
Model: 1524-200
Country Of Origin: China
Features:
Non waterproof
Measure edge to hole center distance
Resolution: 0.01mm/0.0005"
Buttons: on/off, set, mm/inch, preset (+, -)
Automatic power off, move the digital unit to turn on power
Battery CR2032
Made of stainless steel
| Type: | Digital Back-Jaw Edge to Center Caliper |
| Range: | 5-200mm / 0.2-8" |
| Accuracy: | ±0.1mm |
| Resolution: | 0.01mm / 0.0005" |
| Material: | Stainless Steel |
| Battery: | CR2032 |
| Buttons: | on/off, set, mm/inch, preset (+, -) |
| Data Output: | Yes (data interface) |
| Wireless Transmitter: | Optional (7315-25, receiver required) |
| Waterproof: | No |
| Dimensions (L): | 310mm |
The INSIZE 1524-200 Digital Back-Jaw Edge to Center Caliper is a highly specialized precision measuring instrument designed to accurately measure the distance from an edge to the center of a hole. Standard calipers cannot perform this task easily; the 1524 Series solves this with a unique back-jaw design that features a conical tip to perfectly center inside the hole while the opposite jaw rests against the edge. Made of durable stainless steel, it offers a measuring range of 5-200mm (0.2-8") with an accuracy of ±0.1mm and a resolution of 0.01mm/0.0005". It includes on/off, set, mm/inch, and preset (+/-) buttons, along with automatic power-off and data output. The caliper is powered by a CR2032 battery and supports an optional wireless transmitter (7315-25) for data transfer. An optional calibration standard block (1524-BLOCK) is available for verification.
INSIZE 1524-200 Digital Back-Jaw Edge to Center Caliper – Precision Hole Location Measurement
Eliminate complex calculations and improve accuracy with the INSIZE 1524-200 Digital Back-Jaw Edge to Center Caliper. Designed for machinists, engineers, and quality control inspectors, this specialized instrument solves the specific challenge of measuring the distance from an edge or datum to the exact center of a hole.
Key Features & Benefits:
-
Specialized Back-Jaw Design: Features a conical tip on the back jaw that self-centers into holes, paired with a flat jaw to rest against the reference edge, providing direct edge-to-center readings.
-
High Precision: Delivers reliable measurements with an accuracy of ±0.1mm and a resolution of 0.01mm/0.0005".
-
Durable Construction: Made of high-quality stainless steel to withstand demanding shop environments.
-
Advanced Digital Functions: Includes buttons for on/off, set, mm/inch conversion, and preset (+/-) for quick tolerance checks.
-
Data Output: Supports data output for recording and analysis, compatible with an optional wireless transmitter (7315-25).
-
Automatic Power Off: Saves battery life, with power restored by moving the digital unit.
-
Reliable Power: Powered by a standard CR2032 battery.
-
Optional Calibration: Compatible with the 1524-BLOCK calibration standard for maintaining accuracy.
