DIGITAL CALIPER WITH INTERCHANGEABLE BALL TIP
BDT 36,005/-
Product Details
Brand: INSIZE
Model: 1527-3001
Country Of Origin: China
Features:
Non waterproof
Resolution 0.01mm/0.0005"
Buttons: on/off, set, mm/inch, preset (+, -)
Automatic power off, move the digital unit to turn on power
Battery CR2032
Made of stainless steel
Optional accessory: ball tips
| Type: | Digital Caliper with Interchangeable Ball Tips |
| Range: | (22.22+D) ~ 300mm |
| Accuracy: | ±0.03mm |
| Resolution: | 0.01mm / 0.0005" |
| Material: | Stainless Steel |
| Battery: | CR2032 |
| Buttons: | on/off, set, mm/inch, preset (+, -) |
| Data Output: | Yes (data interface) |
| Wireless Transmitter: | Optional (7315-25, receiver required) |
| Waterproof: | No |
| Dimensions (Overall Length): | 400mm |

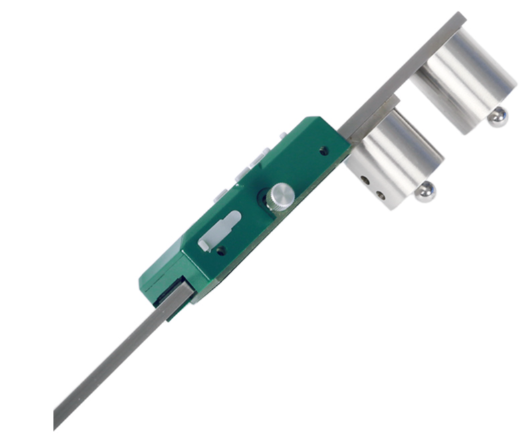

The INSIZE 1527-3001 Digital Caliper with Interchangeable Ball Tips is a highly versatile precision measuring instrument designed for complex internal measurements. Unlike standard calipers, its unique back-jaw design allows for the attachment of optional ball tips (available in ruby or stainless steel, from 1/16" to 1/2" diameter), making it ideal for measuring internal grooves, recesses, and center distances where standard flat jaws cannot reach.
The measuring range is calculated as (22.22 + D) to 300mm, where "D" is the diameter of the installed ball tips. Made of durable stainless steel, the caliper offers a resolution of 0.01mm/0.0005" and an accuracy of ±0.03mm. It features a digital display with on/off, set, mm/inch, and preset (+/-) buttons, automatic power-off, and data output. It is powered by a CR2032 battery and is available with a standard data interface (1527-3001) or built-in wireless (1527-3001WL).
INSIZE 1527-3001 Digital Caliper – Interchangeable Ball Tips for Complex Measurements
Adapt to challenging internal measurement tasks with the INSIZE 1527-3001 Digital Caliper with Interchangeable Ball Tips. Designed for machinists, toolmakers, and quality control inspectors, this specialized instrument features a unique back-jaw design that accepts a wide variety of ball tips, allowing you to accurately measure internal grooves, recesses, and center distances that standard calipers simply cannot reach.
Key Features & Benefits:
-
Interchangeable Ball Tip Design: The back jaws are designed to hold optional ball tips (sold separately), enabling precise measurement of internal features.
-
Wide Range of Tips: Choose from ruby or stainless steel tips ranging from 1/16" (Ø1.5875mm) to 1/2" (Ø12.7mm) in diameter to match your specific application.
-
Dynamic Measuring Range: The caliper's range is calculated as (22.22 + D) to 300mm, where D is the diameter of the selected ball tip.
-
High Precision: Delivers reliable measurements with an accuracy of ±0.03mm and a resolution of 0.01mm/0.0005".
-
Durable Construction: Made of high-quality stainless steel to withstand demanding shop environments.
-
Advanced Digital Functions: Includes buttons for on/off, set, mm/inch conversion, and preset (+/-) for quick tolerance checks.
-
Data Output & Wireless Options: The standard model (1527-3001) supports data output via an optional transmitter (7315-25), while the 1527-3001WL features built-in wireless.
-
Reliable Power: Powered by a standard CR2032 battery with an automatic power-off feature.
