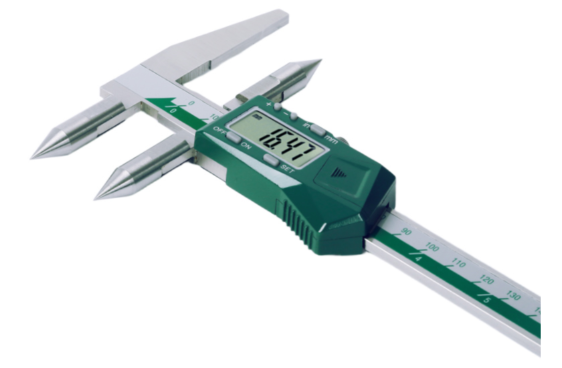

DIGITAL CENTERLINE/EDGE TO CENTER CALIPER
BDT 61,296/-
Product Details
Brand: INSIZE
Model: 1525-300
Country Of Origin: China
Features:
Non waterproof
Measure hole center distance or edge to hole center distance
Resolution: 0.01mm/0.0005"
Buttons: on/off, set, mm/inch, preset (+, -)
Automatic power off, move the digital unit to turn on power
Battery CR2032
Made of stainless steel
| Type: | Digital Centerline and Edge to Center Caliper |
| Range (Upper Jaw / Edge to Center): | 5-300mm / 0.2-12" |
| Range (Lower Jaw / Center to Center): | 10-300mm / 0.4-12" |
| Accuracy: | ±0.08mm |
| Resolution: | 0.01mm / 0.0005" |
| Hole Diameter Accommodation (ØD): | 10mm |
| Material: | Stainless Steel |
| Battery: | CR2032 |
| Buttons: | on/off, set, mm/inch, preset (+, -) |
| Data Output: | Yes (data interface) |
| Wireless Transmitter: | Optional (7315-25, receiver required) |
| Waterproof: | No |
| Dimensions (L/L1/L2/c): | 410mm / 44.5mm / 55mm / 17mm |
The INSIZE 1525-300 Digital Centerline and Edge to Center Caliper is a highly specialized precision measuring instrument designed for accurately determining the distance between hole centers or from an edge to a hole center. As part of the 1525 Series, it features a unique set of interchangeable conical jaws (ØD=10mm) that self-center into holes, providing direct, reliable readings without complex calculations. Made of durable stainless steel, this caliper offers an upper jaw range of 5-300mm (edge to center) and a lower jaw range of 10-300mm (center to center), with a resolution of 0.01mm/0.0005" and an accuracy of ±0.08mm. It includes buttons for on/off, set, mm/inch, and preset (+/-) functions, along with automatic power-off and a CR2032 battery. The caliper includes a data interface and is compatible with an optional wireless transmitter (7315-25, receiver required). It is non-waterproof and ideal for industrial, automotive, and quality control applications requiring precise hole location and centerline measurement.
INSIZE 1525-300 Digital Centerline & Edge to Center Caliper – Precision Hole Distance Measurement
Measure hole locations and center distances with speed and precision using the INSIZE 1525-300 Digital Centerline and Edge to Center Caliper. Designed for machinists, engineers, and quality control inspectors, this specialized instrument solves the challenge of measuring between hole centers or from an edge to a hole center, eliminating the need for manual calculations.
Key Features & Benefits:
-
Self-Centering Jaws: Features conical tips that automatically center inside holes (up to Ø10mm), ensuring accurate and repeatable measurements.
-
Dual Measurement Capability: Upper jaws measure from an edge to a hole center, while lower jaws measure the distance between two hole centers.
-
High Precision: Features a resolution of 0.01mm/0.0005" and an accuracy of ±0.08mm for reliable results.
-
Durable Construction: Made of high-quality stainless steel to withstand demanding machine shop environments.
-
Advanced Digital Functions: Includes buttons for on/off, set, mm/inch conversion, and preset (+/-) for quick tolerance checks.
-
Data Output & Wireless Capability: Supports data output and is compatible with an optional wireless transmitter (7315-25, receiver required).
-
Automatic Power Off: Saves battery life, with power restored by moving the digital unit.
-
Reliable Power: Powered by a standard CR2032 battery.
-
Multiple Models Available: The 1525 Series includes models with ranges up to 1500mm to suit large-scale applications.
