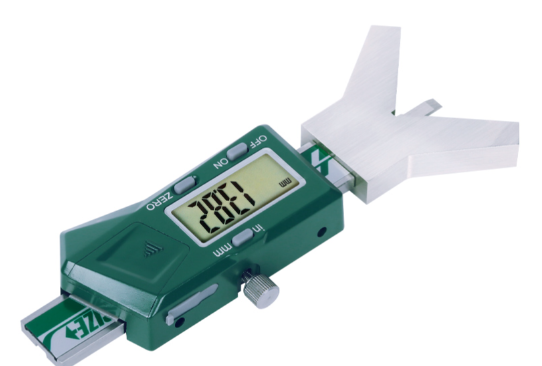

DIGITAL CHAMFER GAGE
BDT 26,583/-
Product Details
Brand: INSIZE
Model: 1537-20
Country Of Origin: China
Features:
Non waterproof
Measure 45° chamfer length
Resolution: 0.01mm/0.0005"
Buttons: on/off, zero, mm/inch
Automatic power off, move the digital unit to turn on power
Battery CR2032
Data output
Made of stainless steel
Supplied with pin gauge for zero setting
Optional accessory: wireless transmitter code 7315-25 (receiver is needed)
| Type: | Digital Chamfer Gauge |
| Range: | 0-20mm / 0-0.787" |
| Accuracy: | ±0.05mm |
| Resolution: | 0.01mm / 0.0005" |
| Measurement Angle: | 45° |
| Material: | Stainless Steel |
| Battery: | CR2032 |
| Buttons: | on/off, zero, mm/inch |
| Data Output: | Yes |
| Wireless Transmitter: | Optional (7315-25, receiver required) |
| Waterproof: | No |
The INSIZE 1537-20 Digital Chamfer Gauge is a highly specialized precision measuring instrument designed to directly measure 45° chamfer lengths without the need for manual calculation. Unlike traditional methods, its direct-reading digital display provides instant, accurate results. The 1537-20 model features a wide measuring range of 0-20mm, making it ideal for larger chamfers on flat surfaces (note: chamfers inside holes cannot be measured with this tool). Made of durable stainless steel, it includes buttons for on/off, zero, and mm/inch conversion, along with automatic power-off and data output capabilities. It is powered by a CR2032 battery and comes supplied with a pin gauge for accurate zero setting. An optional wireless transmitter (7315-25) is available for convenient data transfer.
INSIZE 1537-20 Digital Chamfer Gauge – Direct Reading 45° Measurement
Eliminate complex calculations and speed up your inspection process with the INSIZE 1537-20 Digital Chamfer Gauge. Designed for machinists, quality control inspectors, and engineers, this innovative instrument provides instant, direct digital readings of 45° chamfer lengths on flat surfaces and edges.
Key Features & Benefits:
-
Direct Reading Technology: Measures the actual chamfer length instantly, saving time and eliminating human error associated with manual calculation.
-
Dedicated to 45° Chamfers: The V-shaped jaws are precisely machined to sit flush on a 45° chamfer for accurate measurement. (Note: Designed for external edges, not internal hole chamfers).
-
Wide Measuring Range: The 1537-20 model covers a range of 0-20mm (0-0.787"), accommodating a wide variety of standard chamfer sizes.
-
High Precision: Delivers reliable measurements with an accuracy of ±0.05mm and a resolution of 0.01mm/0.0005".
-
Durable Construction: Made of high-quality stainless steel to withstand demanding shop environments.
-
Easy Zeroing: Supplied with a pin gauge for quick and accurate zero setting before measurements.
-
Data Output: Supports data output and is compatible with an optional wireless transmitter (7315-25, receiver required).
-
Reliable Power: Powered by a standard CR2032 battery with an automatic power-off feature.
