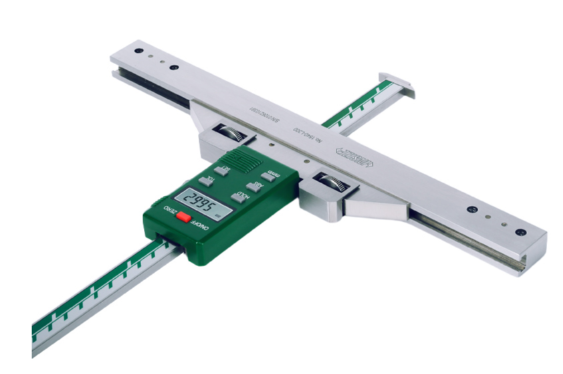

DIGITAL DOUBLE HOOK DEPTH GAGE
BDT 86,687/-
Product Details
Brand: INSIZE
Model: 1540-300
Country Of Origin: China
Features:
Non waterproof
Resolution: 0.01mm/0.0005"
Buttons: on/off, zero, mm/inch, ABS/INC, data hold, TOL, set
ABS/INC is for absolute and incremental measurement
TOL is for tolerance measurement
Made of stainless steel
LR44 battery, data output
Supplied with gauge block for zero setting
Optional accessory: extension base, wireless transmitter code 7315-1150 (receiver is needed)
| Type: | Digital Double Hook Depth Gauge |
| Range: | 0-300mm / 0-12" |
| Accuracy: | ±0.04mm |
| Resolution: | 0.01mm / 0.0005" |
| Material: | Stainless Steel |
| Battery: | LR44 |
| Buttons: | on/off, zero, mm/inch, ABS/INC, data hold, TOL, set |
| Data Output: | Yes |
| Wireless Transmitter: | Optional (7315-1150, receiver required) |
| Waterproof: | No |
| Included: | Gauge block for zero setting |

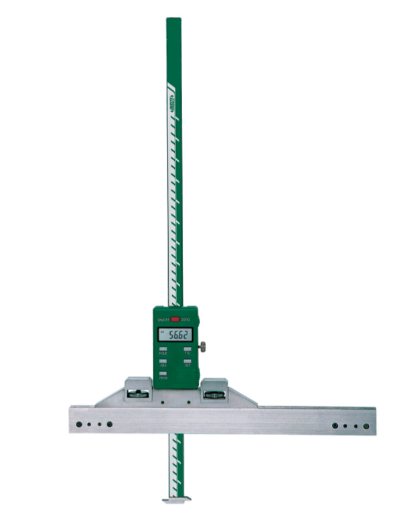

The INSIZE 1540-300 Digital Double Hook Depth Gauge is a highly specialized precision measuring instrument designed for complex depth measurements. Unlike standard depth gauges, it features a unique "double hook" measuring blade that allows users to measure the depth of internal grooves, undercuts, and recesses from the inside out.
Made of durable stainless steel, this gauge offers a wide measuring range of 0-300mm (0-12") with a high resolution of 0.01mm/0.0005" and an accuracy of ±0.04mm. It features advanced digital functions, including ABS/INC (for absolute and incremental measurements) and TOL (for direct tolerance measurement), making it ideal for rigorous quality control. It is powered by an LR44 battery, supports data output (compatible with optional wireless transmitter 7315-1150), and is supplied with a dedicated gauge block for accurate zero setting. Optional extension bases (up to 800mm) are available for measuring across larger spans.
INSIZE 1540-300 Digital Double Hook Depth Gauge – Precision Internal Measurement
Measure internal grooves, undercuts, and recesses with unmatched precision using the INSIZE 1540-300 Digital Double Hook Depth Gauge. Designed for machinists, toolmakers, and quality control inspectors, this specialized instrument features a unique double-hook blade that allows you to hook onto internal ledges to measure depths that standard depth gauges simply cannot reach.
Key Features & Benefits:
-
Double Hook Blade: Specifically designed to measure the depth of internal grooves, undercuts, and inner recesses.
-
Advanced Digital Functions: Features ABS/INC buttons for absolute and incremental measurements, plus a TOL button for direct tolerance measurement (GO/NO-GO).
-
High Precision: Delivers reliable measurements with a resolution of 0.01mm/0.0005" and an accuracy of ±0.04mm over a 0-300mm range.
-
Durable Construction: Made of high-quality stainless steel to withstand demanding shop environments.
-
Easy Zeroing: Supplied with a dedicated gauge block for accurate zero setting.
-
Data Output & Wireless Capability: Supports data output and is compatible with an optional wireless transmitter (7315-1150, receiver required).
-
Versatile Base Options: Standard base is 160mm wide, with optional extension bases available from 300mm up to 800mm for larger workpieces.
