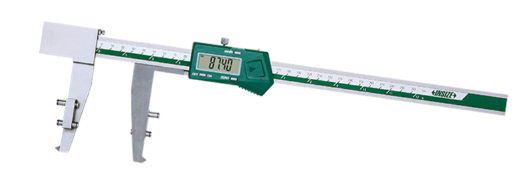

DIGITAL DRUM BRAKE CALIPER
BDT 54,462/-
Product Details
Brand: INSIZE
Model: 1538-300
Country Of Origin: China
Features:
Non waterproof
Measure internal diameter of drum brakes
Resolution: 0.01mm/0.0005"
Buttons: on/off, zero, mm/inch
Automatic power off, move the digital unit to turn on power
Battery CR2032
Data output
Made of stainless steel
Optional accessory: wireless transmitter code 7315-22 (receiver is needed)
| Type: | Digital Drum Brake Caliper |
| Range: | 30-300mm / 1.2-12" |
| Accuracy: | ±0.05mm |
| Resolution: | 0.01mm / 0.0005" |
| Material: | Stainless Steel |
| Battery: | CR2032 |
| Buttons: | on/off, zero, mm/inch |
| Data Output: | Yes |
| Waterproof: | No |
| Overall Length: | 445mm |
The INSIZE 1538-300 Digital Drum Brake Caliper is a highly specialized precision measuring instrument designed for the automotive industry to accurately measure the internal diameter of drum brakes. Standard calipers often struggle to get a true measurement due to the wear lip on the drum. This specialized tool solves that problem with its unique adjustable depth rods on the jaws, which allow the user to step over the lip and measure the actual braking surface.
Made of durable stainless steel, it features a wide measuring range of 30-300mm (1.2-12") with a resolution of 0.01mm/0.0005" and an accuracy of ±0.05mm. It includes standard digital functions (on/off, zero, mm/inch), automatic power-off, and data output. It is powered by a CR2032 battery and comes with a dedicated calibration block for accurate zeroing. It is the ideal tool for brake mechanics, machinists, and quality control inspectors.
INSIZE 1538-300 Digital Drum Brake Caliper – Precision Automotive Measurement
Ensure safe and reliable braking performance with the INSIZE 1538-300 Digital Drum Brake Caliper. Designed specifically for automotive mechanics, machinists, and quality control inspectors, this specialized instrument solves the unique challenge of accurately measuring the internal diameter of worn drum brakes.
Standard calipers often give false readings because they rest on the unworn lip at the edge of the drum. The 1538-300 features adjustable depth rods on its jaws, allowing you to measure the true internal diameter of the braking surface, bypassing the lip entirely.
Key Features & Benefits:
-
Specialized Drum Brake Design: Adjustable depth rods allow for accurate measurement of the working surface of the drum brake, avoiding the wear lip.
-
Wide Measuring Range: Capable of measuring drums from 30mm up to 300mm (1.2-12").
-
High Precision: Features a resolution of 0.01mm/0.0005" and an accuracy of ±0.05mm.
-
Included Calibration Block: Comes with a dedicated calibration block to ensure accurate zeroing and long-term reliability.
-
Durable Construction: Made of high-quality stainless steel to withstand the tough automotive shop environment.
-
Data Output & Wireless Capability: Supports data output and is compatible with an optional wireless transmitter (7315-22, receiver required).
-
Advanced Digital Functions: Includes on/off, zero, and mm/inch conversion buttons, plus automatic power-off.
