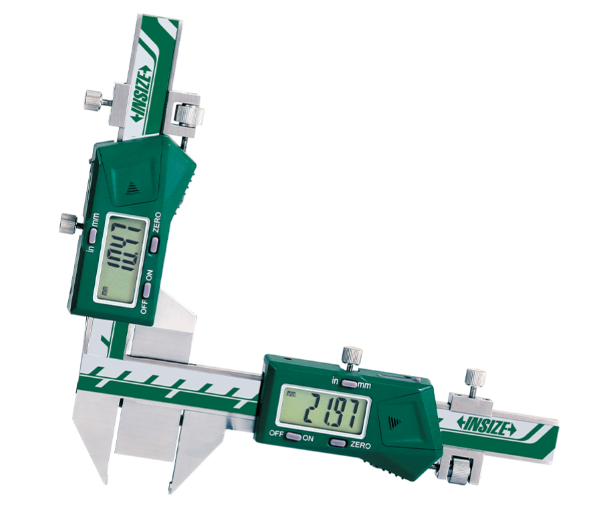

DIGITAL GEAR TOOTH CALIPER
BDT 56,171/-
Product Details
Brand: INSIZE
Model: 1181-M25A
Country Of Origin: China
Features:
Non waterproof
Resolution: 0.01 mm / 0.0005"
Carbide tips
Measure the tooth thickness by positioning the tooth height (for tooth height > 1 mm)
Buttons: zero, on/off, mm/inch
Automatic power off; move the digital unit to turn on power
Data output
Battery CR2032
Made of stainless steel
| Range | M1-24mm |
| Accuracy of height measurement | ±0.03mm |
| Accuracy of thickness measurement | ±0.03mm |
| Total accuracy | ±0.04mm |
| L1 | 170 |
| L2 | 165.5 |
| a | 21 |
| b1 | 16 |
| b2 | 16 |
| d | 30.5 |
The INSIZE Digital Gear Tooth Calipers are precision measuring instruments built for accurate gear tooth thickness inspection on the shop floor and in the inspection room. Using the pitch circle as the reference, the caliper locates the tooth height and then measures tooth thickness directly — a method suited to gears with a tooth height greater than 1 mm.
The tool combines a digital height-setting unit with carbide-tipped measuring jaws. The carbide tips resist wear and hold their edge through repeated contact with hardened gear flanks, so accuracy stays stable over long production runs. A resolution of 0.01 mm (0.0005") gives clear, repeatable readings on the LCD display.
Operation is deliberately simple: three buttons handle zero, on/off and mm/inch switching, and the display powers up automatically as soon as the digital unit is moved. Automatic power-off preserves battery life, and a standard CR2032 cell keeps the instrument running.
The body is made of stainless steel for rigidity and corrosion resistance. Two size ranges are available — M1-24 mm (1181-M25A) and M5-45 mm (1181-M50A) — each with ±0.03 mm accuracy on both height and thickness measurement and ±0.04 mm total accuracy.
For data collection, choose the data interface version (1181-M25A / 1181-M50A) and pair it with the optional wireless transmitter 7315-22 and receiver, or choose the built-in wireless version (1181-M25AWL / 1181-M50AWL), which needs only the matching receiver 7315-2/3/6/7/8/9. Note that these calipers are non-waterproof and should be kept away from coolant spray and moisture.
Digital Gear Tooth Calipers — Measure Gear Tooth Thickness with Confidence
Checking gear tooth thickness accurately is one of the most important steps in gear production, and it is also one of the easiest places to lose time. The INSIZE Digital Gear Tooth Calipers solve that problem by combining an adjustable digital height unit with carbide-tipped thickness jaws, letting you set the tooth height on the pitch circle and read tooth thickness directly from the display.
Purpose-Built for Gear Inspection
Unlike a standard caliper, this instrument is designed around the geometry of a gear tooth. You first position the tool so the height is referenced to the pitch circle, then close the jaws to measure the tooth thickness at that point. This makes it ideal for gears with a tooth height greater than 1 mm, and it delivers consistent results whether you are checking a single sample or inspecting parts throughout a production run.
Accuracy You Can Rely On
- Resolution: 0.01 mm / 0.0005"
- Height measurement accuracy: ±0.03 mm
- Thickness measurement accuracy: ±0.03 mm
- Total accuracy: ±0.04 mm
Carbide Tips and Stainless Steel Construction
The measuring tips are made of carbide, which resists the wear caused by repeated contact with hardened gear teeth and helps maintain accuracy over thousands of measurements. The caliper body is stainless steel, giving the frame the stiffness needed for stable readings and the durability needed in a working shop environment.
Simple, Fast Everyday Operation
- Buttons: zero, on/off, mm/inch
- Automatic power on when the digital unit is moved
- Automatic power off to extend battery life
- Battery: CR2032
- Data output for recording measurement results
