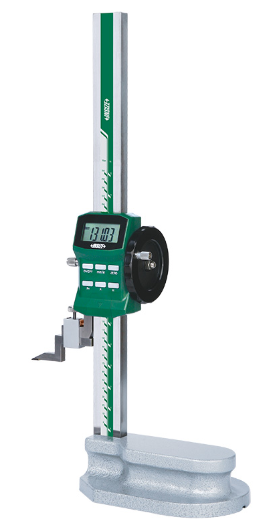

Digital Height Gauges With Driving Wheel
BDT 394,455/-
Product Details
Brand: INSIZE
Model: 124432
Country Of Origin: China
Features:
Non waterproof
Resolution: 0.01mm/0.0005"
Buttons: on/off, zero, mm/inch, preset +, preset -, ABS/INC
Automatic power off, move the digital unit to turn on power
Carbide tipped scriber
Made of stainless steel (except the base)
Battery CR2032
Data output
Supplied with dust cover
With dial test indicator holder
Optional accessory: wireless transmitter code 7315-22 (receiver is needed), clamp for protractors (code 2372-CLAMP)
| Range | 0-1000mm/0-40" |
| Accuracy | ±0.07mm |
| L | 1220mm |
| W | 265mm |
| H | 70mm |
| a | 92mm |
| b | 48mm |
| c | 40mm |
| h | 12mm |
The Insize 1156-1000 is a heavy-duty Digital Height Gauge with a Driving Wheel, designed for precise measurement of large workpieces. With an impressive range of 0-1000mm (0-40") and an accuracy of ±0.07mm, this gauge is ideal for large-scale machining, fabrication, and quality inspection. It features a resolution of 0.01mm/0.0005" and a user-friendly control panel with buttons for on/off, zero, mm/inch, preset +, preset -, and ABS/INC. The driving wheel mechanism allows for smooth, precise movement along the stainless steel beam (excluding the base), and moving the digital unit automatically turns the power on.
The gauge comes equipped with a carbide-tipped scriber and a dial test indicator holder, ensuring versatility for various measurement tasks. It includes a dust cover for protection and a CR2032 battery. Data output capability allows for connection to external devices, and an optional wireless transmitter (code 7315-22) is available for enhanced data transmission. The 1156-1000 features a robust base and a supporting rod for stability during operation, with a total weight and dimensions (L: 1220mm, W: 265mm, H: 70mm) suited for large-scale workshops. It is supplied with a manufacturer inspection certificate.
Precision Large-Scale Measurement with the Insize 1156-1000 Digital Height Gauge
Elevate your large-scale measurement capabilities with the Insize 1156-1000 Digital Height Gauge with Driving Wheel. Designed for professionals working with large components, this robust instrument offers a massive 0-1000mm (0-40") measuring range and high accuracy of ±0.07mm. Its stainless steel construction (excluding the base) ensures durability, while the driving wheel provides smooth, effortless movement along the beam for precise positioning.
Key Features and Benefits:
-
Extended Measuring Range: Measures up to 1000mm/40" for large workpieces and assemblies.
-
High Precision: Accuracy of ±0.07mm and resolution of 0.01mm/0.0005" for reliable, fine measurements.
-
Driving Wheel Mechanism: Allows for smooth, precise movement along the beam; moving the digital unit turns power on automatically.
-
User-Friendly Controls: Features on/off, zero, mm/inch, preset +, preset -, and ABS/INC buttons.
-
Durable Construction: Made of stainless steel (except the base) for long-lasting performance.
-
Complete Kit: Includes carbide-tipped scriber, dial test indicator holder, dust cover, and CR2032 battery.
-
Data Output: Supports external data transmission, with an optional wireless transmitter (7315-22) available.
-
Optional Accessories: Compatible with a clamp for protractors (2372-CLAMP) and a wireless transmitter for enhanced functionality.
-
Supplied with Certificate: Includes a manufacturer inspection certificate for quality assurance.
