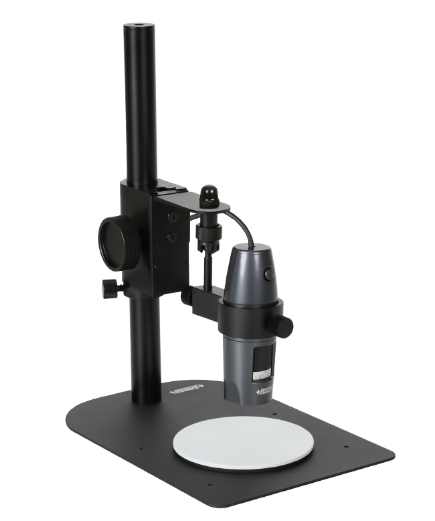

Digital Measuring Microscopes (Economic Type)
BDT 41,233/-
Product Details
Brand: INSIZE
Model: ISM-PM200SA
Country Of Origin: China
Features:
Can take pictures and videos
Supplied with software
Calibration rulers (graduation 0.1 and 1mm) are included
With focus support
| Magnification: | 10X~200X |
| Pixel: | 2M (1920Ã1080) |
| Illumination: | Built-in adjustable LED |
| Power Supply: | USB 2.0 cable (5Âą0.1V) |
| Measuring Accuracy: | 30Âĩm (at 50X) down to 8Âĩm (at 200X) |
| Standard Delivery: | Main unit, USB flash disk (software/calibration) |
The INSIZE ISM-PM200SA Digital Measuring Microscope (Economic Type) is a highly portable, USB-powered inspection system designed for seamless integration with your PC. Its unique design includes a focus support that allows you to place the microscope directly onto the workpiece for stable inspection and measurement, eliminating the need for a traditional bulky stand in tight spaces.
Powered simply by a USB 2.0 connection (5V), it features built-in adjustable LED illumination and offers a magnification range of 10X to 200X, achieving measuring accuracy down to 8µm at maximum zoom. The included software (compatible with Windows 7-11 and available in 8 languages) turns your computer into a powerful metrology workstation. It provides a comprehensive suite of measurement tools—including radius, angle, distance, and area calculations—and allows you to seamlessly export your data directly to Excel. The standard package includes the microscope main unit and a USB flash disk containing the software and calibration rulers.
INSIZE ISM-PM200SA Digital Measuring Microscope – Portable USB Inspection System
Achieve quick, accurate, and PC-integrated measurements with the INSIZE ISM-PM200SA Digital Measuring Microscope. Designed as a highly affordable "Economic Type" solution, this compact system connects directly to your computer via USB, transforming your laptop or desktop into a powerful inspection station for electronics, machined parts, and materials.
Key Features & Benefits:
-
Unique Focus Support Design: Unlike traditional microscopes, this unit features a removable focus support. This allows you to place the microscope directly onto a large, flat workpiece for hand-held inspection, ensuring stable contact and clear imaging without needing a bulky stand.
-
Plug-and-Play USB Power: The microscope is powered entirely by a standard USB 2.0 cable (5±0.1V), drawing power directly from your computer. This eliminates the need for extra power adapters and makes it incredibly portable.
-
Versatile Magnification & Illumination: Features a 10X~200X magnification range with built-in adjustable LED lighting, allowing you to clearly see fine details like PCB traces, solder joints, and surface textures.
-
Powerful Measurement Software: The included software is packed with professional measurement tools, including point-to-line distance, radius of an arc, area of a polygon, angle measurement, and more. It also features a "picture taken before" function for side-by-side comparison.
-
Seamless Excel Integration: The software allows you to instantly export your measurement data and results directly to Excel, streamlining your quality control reporting.
-
Multilingual Support: The software supports 8 languages (English, Japanese, Ukrainian, German, French, Italian, Spanish, Chinese) and is compatible with Windows 7, 8, 10, and 11.
