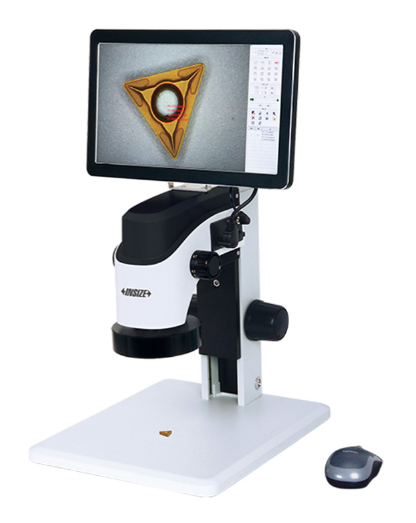

Digital Measuring Microscopes (Standard Type)
BDT 400,780/-
Product Details
Brand: INSIZE
Model: 5307-ID100A
Country Of Origin: China
Features:
Electronic magnification feedback lens: when the objective lens magnification is changed manually, the software automatically selects the corresponding pre-calibration data and calibration is not needed
Two methods of LED brightness adjustment, knob adjustment and software adjustment
Built-in software without computer, operated by mouse
Take pictures, save to USB flash disk
Measuring results can be sent to Excel
| Sensor: | 1/2" CMOS, 2M Pixel |
| Resolution: | 1920Ã1080 (60fps) |
| Magnification: | 12X~77X |
| View Field: | 3.2Ã1.8~20.9Ã11.7mm |
| Dimensions: | 260Ã320Ã500mm |
| Net Weight: | 5.2kg |
The INSIZE 5307-ID100A Digital Measuring Microscope (Standard Type) is an advanced, standalone optical inspection system designed for high-magnification, precise dimensional analysis. Featuring an 11.6-inch LCD monitor with an adjustable display angle and intuitive built-in software, it allows operators to perform complex measurements and image captures directly on the screen without requiring an external computer.
A standout feature of this model is the Electronic Magnification Feedback Lens. When the operator manually adjusts the objective lens (0.7X~4.5X), the software automatically detects the change and applies the corresponding pre-calibration data, completely eliminating the need for time-consuming manual recalibration. The system also offers dual methods for LED brightness adjustment (via a physical knob or the software interface) and includes an 8-zone LED ring light. With a 1/2" CMOS sensor delivering 1080P resolution at 60fps, it achieves measuring accuracy from ±9µm down to ±5µm. The included software features gridlines and assist tools, and allows for seamless export of measurement data to Excel.
INSIZE 5307-ID100A Digital Measuring Microscope – Standalone Precision Inspection
Achieve high-precision microscopic measurements with the INSIZE 5307-ID100A Digital Measuring Microscope. Designed as a "Standard Type" system, it combines an adjustable 11.6-inch LCD monitor, high-resolution optics, and intelligent software to deliver an exceptional computer-free inspection experience for quality control labs, electronics manufacturing, and precision engineering.
Key Features & Benefits:
-
Smart Magnification Technology: The electronic magnification feedback lens revolutionizes workflow. When you manually adjust the 0.7X~4.5X objective, the software instantly applies the correct pre-calibration data, ensuring accurate measurements without the need for tedious recalibration.
-
Computer-Free Operation: The system features built-in measurement software. You can perform complex analyses, calibrate, and measure parts directly on the included 11.6-inch LCD using the provided mouse—no PC required.
-
Dual Brightness Adjustment: Flexibility is key. Adjust the LED ring light brightness using the physical knob on the unit or via the software interface, ensuring the perfect lighting for any surface.
-
Exceptional Clarity: A 1/2" CMOS sensor captures images at a crisp 1920x1080 resolution and a smooth 60fps frame rate, ensuring you see every detail of your workpiece.
-
Comprehensive Measurement Software: Includes a full suite of measuring tools, gridlines, and assist tools. Measurement results can be seamlessly exported to Excel for immediate reporting.
-
Complete Turnkey Kit: Comes standard with the main unit, 1X auxiliary objective, calibration plate, mouse, and a 16G USB flash disk.
