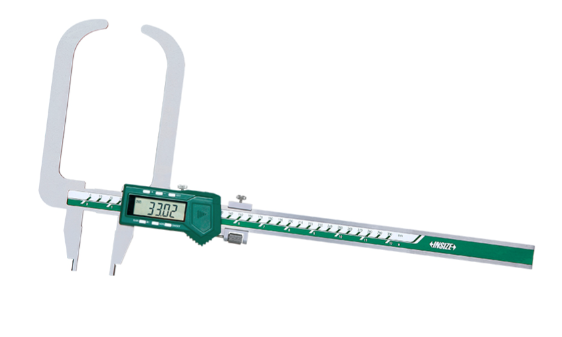

DIGITAL WALL THICKNESS CALIPER
BDT 66,470/-
Product Details
Brand: INSIZE
Model: 1536-300
Country Of Origin: China
Features:
Non waterproof
Measure wall thickness of helmets, domes and curved pots
Resolution: 0.01mm/0.0005"
Buttons: on/off, zero, mm/inch, ABS, data preset
Automatic power off, move the digital unit to turn on power
Battery CR2032
Made of stainless steel
| Type: | Digital Wall Thickness Caliper |
| Range: | 0-300mm / 0-12" |
| Accuracy: | ±0.05mm |
| Resolution: | 0.01mm / 0.0005" |
| Jaw Radius: | R5 |
| Material: | Stainless Steel |
| Battery: | CR2032 |
| Buttons: | on/off, zero, mm/inch, ABS, data preset |
| Data Output: | Yes (data interface) |
| Wireless Transmitter: | Optional (7315-22, receiver required) |
| Waterproof: | No |
| Dimensions (Overall Length): | 500mm |
The INSIZE 1536-300 Digital Wall Thickness Caliper is a highly specialized, non-destructive precision measuring instrument designed to measure the wall thickness of curved, hollow, or domed objects. Unlike standard calipers, it features oversized, deeply curved jaws (R5 radius) that allow the user to easily straddle the edges of helmets, domes, curved pots, and similar structures to accurately measure their wall thickness without cutting or damaging the item. Made of durable stainless steel, this caliper offers a wide measuring range of 0-300mm (0-12") with a resolution of 0.01mm/0.0005" and an accuracy of ±0.05mm. It includes advanced digital functions such as on/off, zero, mm/inch, ABS, and data preset, along with automatic power-off and data output. It is powered by a CR2032 battery and is available with a standard data interface (1536-300) or built-in wireless (1536-300WL).
INSIZE 1536-300 Digital Wall Thickness Caliper – Non-Destructive Measurement for Curved Surfaces
Measure the wall thickness of curved and hollow objects with precision using the INSIZE 1536-300 Digital Wall Thickness Caliper. Designed for quality control, manufacturing, and engineering applications, this highly specialized instrument features large, curved jaws that make it possible to measure the wall thickness of helmets, domes, and curved pots without damaging or cutting the workpiece.
Key Features & Benefits:
-
Specialized Curved Jaws: The uniquely designed R5 curved jaws allow for stable, accurate clamping onto the edges of curved objects.
-
Non-Destructive Testing: Measure wall thickness of finished hollow parts safely and accurately.
-
Wide Application Range: Perfect for motorcycle helmets, industrial domes, ceramic pots, and other curved enclosures.
-
High Precision: Delivers reliable measurements with a resolution of 0.01mm/0.0005" and an accuracy of ±0.05mm over a 0-300mm range.
-
Durable Construction: Made of high-quality stainless steel to withstand demanding environments.
-
Advanced Digital Functions: Includes on/off, zero, mm/inch conversion, ABS, and data preset buttons for complex measurement tasks.
-
Data Output & Wireless Options: The standard model (1536-300) supports data output via an optional transmitter (7315-22), while the 1536-300WL features built-in wireless.
-
Reliable Power: Powered by a standard CR2032 battery with an automatic power-off feature.
