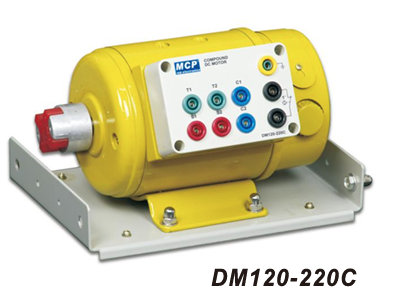

DM120-220C COMPOUND DC MOTOR
BDT 38,601/-
Product Details
Brand: MCP
Model: DM120-220C
Country Of Origin: China
Main Advantages
Compound winding for balanced torque and speed
Variable speed via 0~220VDC armature
Stable 220VDC excitation
Compact and robust construction
Easy wiring with labeled terminals
Reliable 123W output
Suitable for education and research
| Motor Type: | Compound DC Motor |
| Armature Voltage: | 0~220VDC |
| Excitation Voltage: | 220VDC |
| Max. Armature Current: | 0.9A |
| Excitation Current: | 0.13A |
| Max. Output Power: | 123W |
| Max. Rotate Speed: | 1500rpm |
| Shaft Height: | 63mm |
| Dimensions: | 250 x 130 x 150 mm |
The MCP DM120-220C Compound DC Motor is a versatile, high-performance DC motor designed for applications requiring a balance of high starting torque and stable speed regulation. Ideal for industrial, commercial, and educational applications, it features compound winding construction, combining both series and shunt field windings for optimal performance. The DM120-220C operates on an armature voltage of 0~220VDC and a fixed excitation voltage of 220VDC, with a maximum armature current of 0.9A and an excitation current of 0.13A. It delivers a maximum output power of 123W and a maximum rotate speed of 1500rpm. The motor features a 63mm shaft height and dimensions of 250 x 130 x 150 mm, with clearly labeled terminals (T1, T2, E1, E2) for straightforward wiring.
MCP DM120-220C Compound DC Motor – 123W, 1500rpm, 220VDC
Power your equipment with versatility and precision using the MCP DM120-220C, a compound DC motor designed for balanced torque and speed regulation. Ideal for industrial, commercial, and educational applications, this motor combines series and shunt field windings with a compact, durable design.
Key Features & Benefits:
-
Compound Winding Design: Combines series and shunt field windings for a balance of high starting torque and stable speed regulation.
-
Variable Speed Control: Operates on a 0~220VDC armature voltage with a fixed 220VDC excitation voltage for smooth, adjustable speed up to 1500rpm.
-
Reliable Output: Delivers a maximum output power of 123W with a maximum armature current of 0.9A and excitation current of 0.13A.
-
Compact & Robust Design: Features a 63mm shaft height and dimensions of 250 x 130 x 150 mm, suitable for space-constrained applications.
-
Easy Wiring: Equipped with clearly labeled terminals (T1, T2, E1, E2) for straightforward connection.
-
Industrial-Grade Construction: Built to withstand demanding environments in industrial, commercial, and educational settings.
