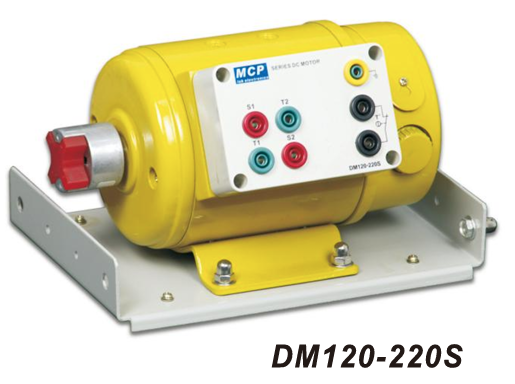

DM120-220S SERIES DC MOTOR
BDT 35,092/-
Product Details
Brand: MCP
Model: DM120-220S
Country Of Origin: China
Main Advantages
High-speed 4000rpm performance
Series winding for high starting torque
Variable speed via 0~220VDC
Compact and lightweight
Easy wiring with labeled terminals
Reliable 123W output
Durable industrial construction
| Motor Type: | Series DC Motor |
| Armature & Excitation Voltage: | 0~220VDC |
| Max. Armature & Excitation Current: | 1.1A |
| Max. Output Power: | 123W |
| Max. Rotate Speed: | 4000rpm |
| Shaft Height: | 63mm |
| Dimensions: | 230 x 130 x 150 mm |
The MCP DM120-220S Series DC Motor is a high-speed, versatile DC motor designed for precise speed and torque control. Ideal for industrial, commercial, and educational applications, it features series winding construction, providing high starting torque and reliable operation. The DM120-220S operates on an armature and excitation voltage of 0~220VDC, with a maximum armature and excitation current of 1.1A. It delivers a maximum output power of 123W and a high maximum rotate speed of 4000rpm. The motor features a 63mm shaft height and compact dimensions of 230 x 130 x 150 mm, with clearly labeled terminals (S1, S2, and others) for straightforward wiring.
MCP DM120-220S Series DC Motor – 123W, 4000rpm, 220VDC
Power your equipment with high-speed performance using the MCP DM120-220S, a series DC motor designed for reliable operation and precise control. Ideal for industrial, commercial, and educational applications, this motor combines series winding construction with a compact, durable design.
Key Features & Benefits:
-
Series Winding Design: Provides high starting torque and stable operation under load.
-
High-Speed Performance: Delivers a maximum output power of 123W with a high rotate speed of 4000rpm.
-
Variable Speed Control: Operates on 0~220VDC for both armature and excitation, with a maximum current of 1.1A.
-
Compact & Robust Design: Features a 63mm shaft height and dimensions of 230 x 130 x 150 mm, suitable for space-constrained applications.
-
Easy Wiring: Equipped with clearly labeled terminals (S1, S2, and others) for straightforward connection.
-
Industrial-Grade Construction: Built to withstand demanding environments in industrial, commercial, and educational settings.
