DM600-3000PM PERMANENT MAGNET DC MOTOR
BDT 48,251/-
Product Details
Brand: MCP
Model: DM600-3000PM
Country Of Origin: China
Main Advantages
High-speed 3000rpm performance
Permanent magnet design for efficiency
Variable speed via 0~220VDC
Powerful 600W output
Compact and robust construction
Easy wiring with labeled terminals
Suitable for education and research
| Motor Type: | Permanent Magnet DC Motor |
| Armature Voltage: | 0~220VDC |
| Max. Armature Current: | 3.3A |
| Max. Output Power: | 600W |
| Max. Rotate Speed: | 3000rpm |
| Shaft Height: | 80mm |
| Dimensions: | 260 x 180 (190) x 150 mm |
| Weight: | 9kg |

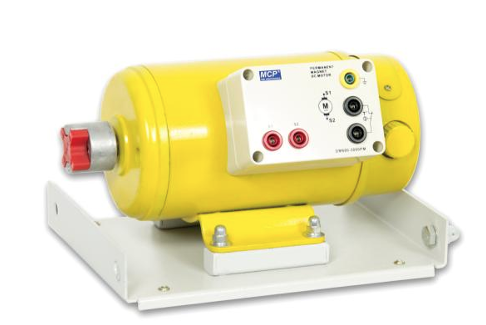

The MCP DM600-3000PM Permanent Magnet DC Motor is a high-speed, powerful DC motor designed for precise speed control and reliable operation. Ideal for industrial, commercial, and educational applications, it features permanent magnet construction for efficient power delivery without the need for a separate field supply. The DM600-3000PM operates on an armature voltage of 0~220VDC with a maximum armature current of 3.3A, delivering a maximum output power of 600W and a high maximum rotate speed of 3000rpm. It features an 80mm shaft height and compact dimensions of 260 x 180 (190) x 150 mm, weighing 9kg. The motor includes clearly labeled terminals (S1, S2, and others) for straightforward wiring.
MCP DM600-3000PM Permanent Magnet DC Motor – 600W, 3000rpm, 220VDC
Power your equipment with high-speed precision using the MCP DM600-3000PM, a permanent magnet DC motor designed for reliable performance and easy speed control. Ideal for industrial, commercial, and educational applications, this motor combines efficient permanent magnet construction with a compact, durable design.
Key Features & Benefits:
-
High-Speed Performance: Delivers a maximum output power of 600W with a high rotate speed of 3000rpm.
-
Permanent Magnet Design: Eliminates the need for a separate field supply, simplifying wiring and improving efficiency.
-
Variable Speed Control: Operates on 0~220VDC armature voltage with a maximum armature current of 3.3A for smooth, adjustable speed control.
-
Compact & Robust Design: Features an 80mm shaft height and dimensions of 260 x 180 (190) x 150 mm, weighing 9kg.
-
Easy Wiring: Equipped with clearly labeled terminals (S1, S2, and others) for straightforward connection.
-
Industrial-Grade Construction: Built to withstand demanding environments in industrial, commercial, and educational settings.
