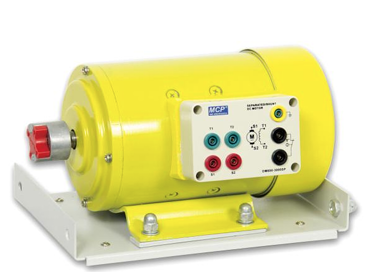

DM600-3000SP SEPARATED/SHUNT DC MOTOR
BDT 48,251/-
Product Details
Brand: MCP
Model: DM600-3000SP
Country Of Origin: China
Main Advantages
Separate armature and field control
High-speed 3000rpm performance
Powerful 600W output
Variable speed via 0~220VDC
Heavy-duty and robust construction
Easy wiring with labeled terminals
Suitable for education and research
| Motor Type: | Separated/Shunt DC Motor |
| Armature & Excitation Voltage: | 0~220VDC |
| Max. Armature Current: | 3.3A |
| Max. Excitation Current: | 0.14A |
| Max. Output Power: | 600W |
| Max. Rotate Speed: | 3000rpm |
| Shaft Height: | 80mm |
| Dimensions: | 280 x 180 (200) x 150 mm |
| Weight: | 13.5kg |
The MCP DM600-3000SP Separated/Shunt DC Motor is a high-speed, powerful DC motor designed for precise speed and torque control. Ideal for industrial, commercial, and educational applications, it features separate armature and excitation windings, allowing independent control of field and armature voltages for advanced motor characterization. The DM600-3000SP operates on an armature and excitation voltage of 0~220VDC, with a maximum armature current of 3.3A and a maximum excitation current of 0.14A. It delivers a maximum output power of 600W and a high maximum rotate speed of 3000rpm. The motor features an 80mm shaft height and dimensions of 280 x 180 (200) x 150 mm, weighing 13.5kg, with clearly labeled terminals (T1, T2, E1, E2, and others) for straightforward wiring.
MCP DM600-3000SP Separated/Shunt DC Motor – 600W, 3000rpm, 220VDC
Power your equipment with high-speed precision and flexibility using the MCP DM600-3000SP, a separated/shunt DC motor designed for advanced speed and torque control. Ideal for industrial, commercial, and educational applications, this motor combines independent field and armature control with a robust, heavy-duty design.
Key Features & Benefits:
-
Separated/Shunt Design: Allows independent control of armature and excitation voltages for advanced motor characterization and precise speed regulation.
-
High-Speed Performance: Delivers a maximum output power of 600W with a high rotate speed of 3000rpm.
-
Reliable Output: Maximum armature current of 3.3A and excitation current of 0.14A.
-
Variable Speed Control: Operates on 0~220VDC for both armature and excitation for smooth, adjustable speed control.
-
Robust & Heavy-Duty Design: Features an 80mm shaft height, dimensions of 280 x 180 (200) x 150 mm, and a weight of 13.5kg for stable industrial performance.
-
Easy Wiring: Equipped with clearly labeled terminals (T1, T2, E1, E2, and others) for straightforward connection.
-
Industrial-Grade Construction: Built to withstand demanding environments in industrial, commercial, and educational settings.
