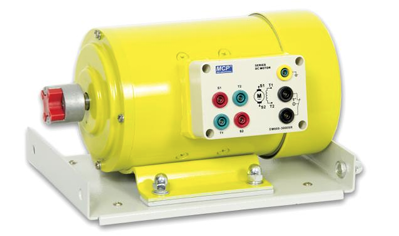

DM600-3000SR SERIES DC MOTOR
BDT 48,251/-
Product Details
Brand: MCP
Model: DM600-3000SR
Country Of Origin: China
Main Advantages
Series winding for high starting torque
Powerful 600W output
Variable speed via 0~220VDC
Stable 1800rpm performance
Heavy-duty and robust construction
Easy wiring with labeled terminals
Suitable for education and research
| Motor Type: | Series DC Motor |
| Armature & Excitation Voltage: | 0~220VDC |
| Max. Armature & Excitation Current: | 4.3A |
| Max. Output Power: | 600W |
| Max. Rotate Speed: | 1800rpm |
| Shaft Height: | 80mm |
| Dimensions: | 280 x 180 (200) x 150 mm |
| Weight: | 13kg |
The MCP DM600-3000SR Series DC Motor is a powerful, industrial-grade DC motor designed for reliable performance and high starting torque. Ideal for industrial, commercial, and educational applications, it features series winding construction for robust operation under heavy loads. The DM600-3000SR operates on an armature and excitation voltage of 0~220VDC, with a maximum armature and excitation current of 4.3A. It delivers a maximum output power of 600W and a maximum rotate speed of 1800rpm. The motor features an 80mm shaft height and dimensions of 280 x 180 (200) x 150 mm, weighing 13kg, with clearly labeled terminals (T1, T2, E1, E2, and others) for straightforward wiring.
MCP DM600-3000SR Series DC Motor – 600W, 1800rpm, 220VDC
Power your equipment with high torque performance using the MCP DM600-3000SR, a series DC motor designed for reliable operation and robust load handling. Ideal for industrial, commercial, and educational applications, this motor combines series winding construction with a heavy-duty, durable design.
Key Features & Benefits:
-
Series Winding Design: Provides high starting torque and stable operation under heavy loads.
-
Powerful Output: Delivers a maximum output power of 600W with a maximum armature and excitation current of 4.3A.
-
Variable Speed Control: Operates on 0~220VDC for both armature and excitation for smooth, adjustable speed up to 1800rpm.
-
Robust & Heavy-Duty Design: Features an 80mm shaft height, dimensions of 280 x 180 (200) x 150 mm, and a weight of 13kg for stable industrial performance.
-
Easy Wiring: Equipped with clearly labeled terminals (T1, T2, E1, E2, and others) for straightforward connection.
-
Industrial-Grade Construction: Built to withstand demanding environments in industrial, commercial, and educational settings.
