EH818 EDUCATIONAL HOUSE
BDT 328,988/-
Product Details
Brand: MCP
Model: EH818
Country Of Origin: China
Features
-
Represents a small-size building for residential use
-
Analyze correct mounting procedures such as:
-
Light and EMF distribution systems with energy counter (kWh)
-
Stair light system
-
Interphone system
-
Protective earth and equipotential system
-
-
Testing of electrical installations according to IEC standards
-
Measure insulation, fault loop, impedance, and voltage drop
-
Execute continuity tests and check protection devices on wired circuits
-
Carry out changes and transformations on existing installations
| Mechanical characteristics: |
Welded, chemically treated, epoxy-painted sheet steel Four walls with electrical/electronic components embedded into flush-mounted junction boxes, placed over hinged panels Structure mounted on a wheel mobile base |
| Dimensions (W×H×D): | 880 × 1300 × 800 mm |
| Weight: | 100 kg |

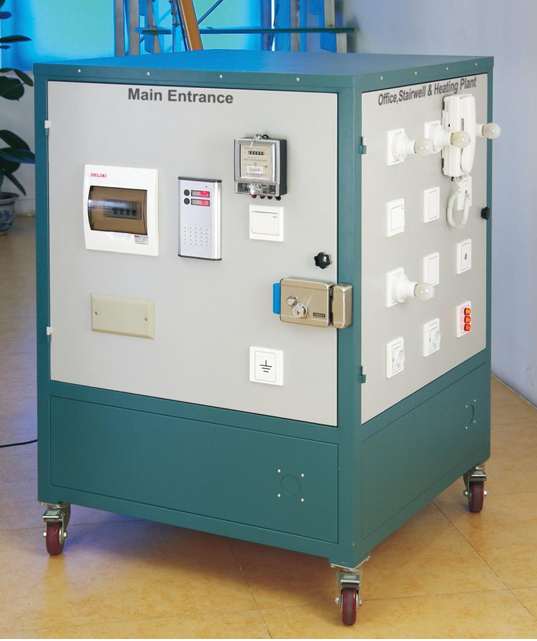

| Wal/ 1 (main entrance) |
Main power supply 230V 16A • 1 Single-phase energy counter 230 V 20 A 1 Switchboard with earth leakage circuit brake and 3 thermal-magnetic circuit breakers • 1 Interphone porter with 2 pushbuttons and 2 illuminated name-plates • 1 Electric lock • 1 Equipotential protective earth collector 1 Ground connections with I-ohm resistor and sectioning terminals |

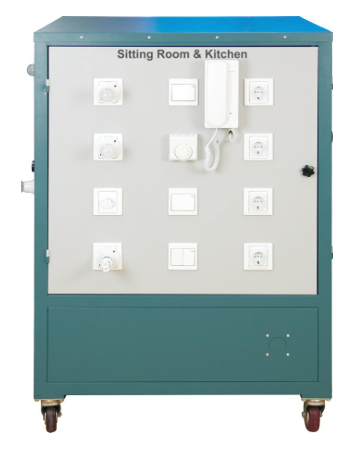

| Wall 2 (sitting room and kitchen) |
1 Light installation with incandescent lamps 230V controlled by 2 pushbuttons and step-by-step relay 2 outlets 230K,' 16A for sitting room users 1 Incandescent lamp 230V with dimmer 1 Door bell 1 Thermostat (day-time area) 1 Low energy consumption lamp controlled by two-way switches 2 Outlets 230V 16 A for electric household appliances 1 Interphone communicating with the gate porter 1 Buzzer for calls from bathroo |
| Wall 3 (bedroom and bathroom) |
1 Incandescent lamp controlled by 2 two-way switches and 1 intermediate switch 1 Outlet 230V 16A for electrical household appliances 1 Single-phase outlet 230V IOAfor the lights 1 Thermostat (night-time area) 2 Pushbuttons for service call 1 Pushbutton for emergency calls from the bathroom 1 Thermostat (bathrooms) • 1 outlet 230V 16Afor boiler supply. |
| Wall 4 (office, stairwell, heating plant) |
2 Lamps with switch 1 Outlet 230V 16A for electric household appliances 1 Single-phase outlet 230V IOA for lights 1 Interphone communicating with the gate porter 1 Incandescent lamp 230V with two pushbuttons and time relay 1 Outlets 230V 16Afor heating plant 3 Pilot lamps (simulation of water pumps for different heating areas) |
The MCP Lab Electronics EH818 Experiment System of Electrical Installations and Testing Techniques is a comprehensive educational apparatus designed to simulate residential electrical installations. Built with four hinged panels representing different walls of a house, it allows students to analyze mounting procedures, perform continuity and insulation tests, and evaluate protective systems according to IEC standards. With integrated components such as energy counters, interphone systems, circuit breakers, and protective earth collectors, the EH818 provides a complete platform for hands-on training in electrical installation and testing.
MCP Lab Electronics EH818 Experiment System is a training solution for electrical installation and testing techniques. Representing a small residential building, it enables analysis of light distribution, stair lighting, interphone systems, and protective earth systems. Designed according to IEC standards, it allows measurement of insulation, impedance, voltage drop, and fault loops. With hinged panels, embedded components, and a mobile base, the EH818 is ideal for laboratories, workshops, and technical education programs.
