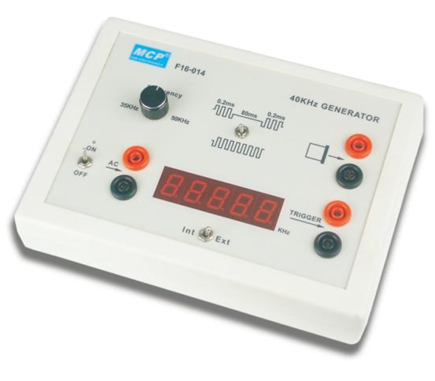

F16-014 Generator 40 kHz Ultrasonic waves experiment system of reflexion
BDT 11,329/-
Product Details
Brand: MCP
Model: F16-014
Country Of Origin: China
Features
-
Square wave generator for ultrasonic transducer (40 kHz type P416000)
-
Supports continuous and pulsed operation
-
Internal and external frequency counter
Ultrasonic Waves Experiment System of Reflection
Objects
-
Demonstrates echo‑sounder principle
-
Determines velocity of sound in air using transit time
-
Measures distance based on sound pulse reflection
Principles
-
Ultrasonic waves reflect at boundaries between media
-
Echo‑sounder emits pulsed ultrasonic signals and measures reflection time
-
Used to determine distance or velocity of sound
-
Transmitter and receiver are piezoelectric transducers (40 kHz)
System Composition
-
2 pcs Ultrasonic transducers 40 kHz (P416000)
-
1 pc AC amplifier (F16‑015)
-
1 pc Generator 40 kHz (F16‑014)
-
1 pc Digital storage oscilloscope (DQ7202CA)
-
2 pcs Test leads (PTL927)
-
2 pcs Stand base, V‑shape (P101413)
-
1 pc Metal scale (1 m)
-
1 pc Reflection plate
| Frequency range: | 35–50 kHz (nominal 40 kHz) |
| Pulse operation: | duration ~0.2 ms, spacing ~80 ms |
| Transducer output voltage: | >18 Vpp |
| Trigger output voltage: | >9 Vpp |
| Counter frequency range: | 1 kHz–150 kHz |
| Sensitivity: | 100 mV |
| Max input voltage: | 20 V |
| Connection sockets: | 4 mm |
| Dimensions: | 190 × 135 × 70 mm |
| Weight: | 0.5 kg |
The F16‑014 Ultrasonic Generator and Ultrasonic Waves Experiment System of Reflection provide a complete solution for studying ultrasonic wave behavior. The generator delivers precise square wave signals from 35–50 kHz, supporting both continuous and pulsed operation for transducer excitation. The experiment system demonstrates the principle of echo‑sounders, enabling measurement of sound velocity in air and distance determination through transit time analysis. Equipped with ultrasonic transducers, amplifier, oscilloscope, and reflection plate, the system is compact, reliable, and widely used in schools, vocational colleges, and research labs for teaching acoustics, wave physics, and sonar principles.
The F16‑014 Generator 40 kHz and Ultrasonic Waves Experiment System of Reflection are designed for physics and engineering laboratories to study ultrasonic principles. The generator provides stable square wave signals for ultrasonic transducers, while the experiment system demonstrates echo‑sounder principles, sound velocity measurement, and distance determination using ultrasonic pulses. Together, they form a complete teaching and research solution for acoustics and wave physics.
