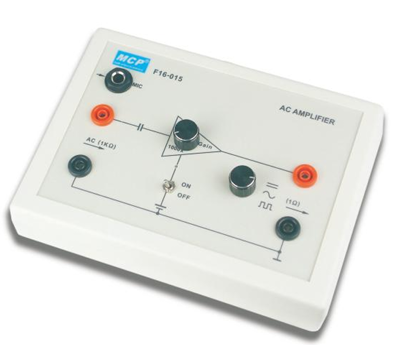

F16-015 AC Amplifier Ultrasonic waves experiment system of reflexion
BDT 12,372/-
Product Details
Brand: MCP
Model: F16-015
Country Of Origin: China
Features
-
Sensitive amplifier with microphone input
-
Designed for verifying ultrasonic waves with ultrasonic transducer (P416000) as receiver
-
Provides sound amplification
| Gain: | 10× to 1000×, continuously adjustable |
| Frequency range: | 10 kHz (100 Hz with microphone input) to 50 kHz |
| Outputs: | signal, trigger, and level (short‑circuit proof) |
| Max signal output: | 4 Vp‑p |
| Trigger output: | TTL compatible |
| Max DC level output: | 4 V |
| Connection sockets: | 4 mm |
| Dimensions: | 190 × 135 × 70 mm |
| Weight: | 0.5 kg |
The F16‑015 AC Amplifier is a specialized teaching and research instrument for physics and acoustics laboratories. Designed to verify ultrasonic waves, it features a sensitive microphone input and continuously adjustable gain from 10× to 1000×. With a frequency range extending to 50 kHz, it supports precise amplification of ultrasonic signals. Outputs include signal, trigger, and level, all short‑circuit proof, ensuring safe and reliable operation. Compact and lightweight, the F16‑015 is widely used in schools, vocational colleges, and research labs as an essential tool for studying ultrasonic phenomena and sound intensity.
The F16‑015 AC Amplifier is a precision instrument designed for ultrasonic experiments and sound verification. With adjustable gain from 10× to 1000× and a wide frequency range up to 50 kHz, it ensures accurate amplification of ultrasonic signals. Equipped with microphone input, signal and trigger outputs, and short‑circuit protection, the F16‑015 is ideal for schools, universities, and research labs studying acoustics, ultrasonic waves, and sound intensity.
