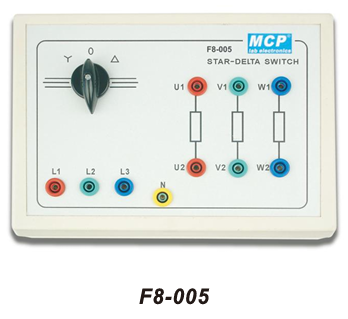

F8-005 STAR-DELTA SWITCH
BDT 7,404/-
Product Details
Brand: MCP
Model: F8-005
Country Of Origin: China
Main Advantages
Reliable star-delta starting control
Clear Y-0-Δ rotary switch
Φ4mm safety sockets
400V / 10A rating
Designed for TM120-220 motor
Compact and lightweight design
Suitable for education and research
| Type: | Star-Delta Switch |
| Compatible Motor: | TM120-220 |
| Max. Voltage: | 400V |
| Max. Current: | 10A |
| Safety Sockets: | Φ4mm |
| Dimensions: | 240×170×90 mm |
| Weight: | 0.5kg |
| Switch Positions: | Y (Star), 0 (Off), Δ (Delta) |
The MCP F8-005 Star-Delta Switch is a specialized motor accessory designed for controlling the starting of AC motors, specifically the TM120-220 model. It provides a reliable and safe method for star-delta starting, reducing starting current and allowing smooth acceleration of the motor. The unit features a clear rotary switch with Y (Star), 0 (Off), and Δ (Delta) positions for easy operation. It is equipped with Φ4mm safety sockets for secure connections, including input terminals (L1, L2, L3), neutral (N), and output terminals (U1, V1, W1, U2, V2, W2). The switch supports a maximum voltage of 400V and a maximum current of 10A. With compact dimensions of 240 x 170 x 90 mm and a weight of only 0.5kg, it is ideal for benchtop use in industrial, commercial, and educational motor control applications.
MCP F8-005 Star-Delta Switch – Motor Starter for TM120-220 AC Motor
Control AC motor starting safely and efficiently with the MCP F8-005, a star-delta switch designed specifically for the TM120-220 motor. As a key motor accessory, it is ideal for engineers, technicians, and educators working with motor control, electrical training, and industrial test rigs.
Key Features & Benefits:
-
Dedicated Compatibility: Specifically designed for use with the MCP TM120-220 AC motor.
-
Reliable Star-Delta Starting: Reduces starting current and allows smooth acceleration of the motor.
-
Clear Operation: Features a rotary switch with Y (Star), 0 (Off), and Δ (Delta) positions for straightforward control.
-
Safety Connections: Equipped with Φ4mm safety sockets for secure and reliable wiring.
-
Comprehensive Terminals: Includes input terminals (L1, L2, L3), neutral (N), and output terminals (U1, V1, W1, U2, V2, W2).
-
Robust Ratings: Supports a maximum voltage of 400V and a maximum current of 10A.
-
Compact & Lightweight: Measures 240 x 170 x 90 mm and weighs only 0.5kg for benchtop convenience.
-
Industrial-Grade Construction: Built to withstand demanding environments in industrial, commercial, and educational settings.
