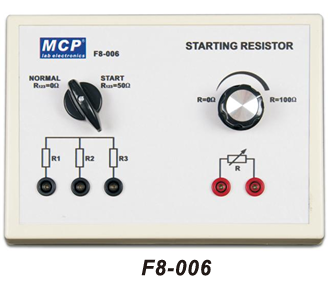

F8-006 STARTING RESISTOR
BDT 8,244/-
Product Details
Brand: MCP
Model: F8-006
Country Of Origin: China
Main Advantages
Combined fixed and variable resistance
Smooth motor starting control
DC range 0~100Ω, AC 50Ω
Max current 0.5A
Easy selection with rotary switch
Compact benchtop design
Suitable for education and research
| Type: | Starting Resistor |
| Resistor (DC): | 0~100Ω / Max. 0.5A |
| Resistor (AC): | 50Ω / Max. 0.5A |
| Dimensions: | 240×170×90 mm |
| Weight: | 1kg |
| Terminals: | R1, R2, R3 (fixed), R (variable) |
| Control: | NORMAL/START rotary switch, variable resistor knob |
The MCP F8-006 Starting Resistor is a versatile motor accessory designed for controlled starting of AC and DC motors. It features a combination of fixed and variable resistance elements to provide smooth acceleration and current limiting during motor startup. The unit offers a DC resistance range of 0~100Ω and an AC resistance of 50Ω, both with a maximum current rating of 0.5A. The front panel includes a rotary switch for selecting between NORMAL and START positions, terminals for three fixed resistors (R1, R2, R3), and a variable resistor with a rotary knob for fine adjustment (R∞~0Ω to R∞~100Ω). It measures 240 x 170 x 90 mm and weighs 1kg, making it ideal for benchtop use in industrial, commercial, and educational motor control applications.
MCP F8-006 Starting Resistor – AC/DC Motor Starting Control, 0~100Ω
Control motor starting with precision using the MCP F8-006, a starting resistor designed for smooth acceleration and current limiting in AC and DC motor applications. As a key motor accessory, it is ideal for engineers, technicians, and educators working with motor control, electrical training, and industrial test rigs.
Key Features & Benefits:
-
Dual AC/DC Capability: Offers a DC resistance range of 0~100Ω and an AC resistance of 50Ω for versatile motor starting applications.
-
Reliable Current Rating: Both AC and DC circuits support a maximum current of 0.5A.
-
Combined Resistance Elements: Features three fixed resistors (R1, R2, R3) and a variable resistor for precise control.
-
Easy Operation: Front panel includes a rotary switch for selecting NORMAL or START positions.
-
Fine Adjustment: Variable resistor with rotary knob allows adjustment from R∞~0Ω to R∞~100Ω.
-
Compact & Portable Design: Measures 240 x 170 x 90 mm and weighs only 1kg for benchtop convenience.
-
Industrial-Grade Construction: Built to withstand demanding environments in industrial, commercial, and educational settings.
