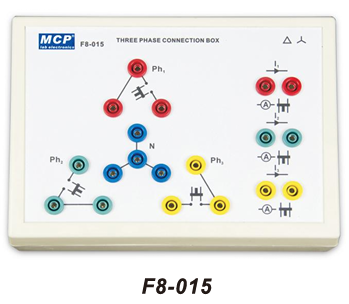

F8-015 THREE PHASE MOUNTING PLATE
BDT 7,404/-
Product Details
Brand: MCP
Model: F8-015
Country Of Origin: China
Main Advantages
Supports star and delta connections
Clear schematic diagrams on panel
Φ4mm safety sockets
400V / 10A rating
Neutral terminal included
Compact and lightweight design
Suitable for education and research
| Type: | Three Phase Mounting Plate / Connection Box |
| Application: | Star (Y) and Delta (Δ) motor current testing |
| Max. Voltage: | 400V |
| Max. Current: | 10A |
| Safety Sockets: | Φ4mm |
| Dimensions: | 240×170×90 mm |
| Weight: | 0.5kg |
| Terminals: | Ph₁, Ph₂, Ph₃, N |
The MCP F8-015 Three Phase Mounting Plate is a specialized motor accessory designed for three-phase AC motor current testing in both star (Y) and delta (Δ) configurations. It features a comprehensive layout of Φ4mm safety sockets, including phase terminals (Ph₁, Ph₂, Ph₃) and a neutral terminal (N), with clear schematic diagrams printed on the panel to guide correct star and delta connections. This allows users to easily configure and test three-phase motors under both connection types. The plate supports a maximum voltage of 400V and a maximum current of 10A. With compact dimensions of 240 x 170 x 90 mm and a weight of only 0.5kg, it is ideal for benchtop use in industrial, commercial, and educational motor testing applications.
MCP F8-015 Three Phase Mounting Plate – Star & Delta Connection Box for AC Motor Testing
Test three-phase AC motors safely and efficiently with the MCP F8-015, a mounting plate designed for current testing in both star (Y) and delta (Δ) connections. As a key motor accessory, it is ideal for engineers, technicians, and educators working with motor control, electrical training, and industrial test rigs.
Key Features & Benefits:
-
Dual Connection Support: Designed for three-phase AC motor current testing in both star and delta configurations.
-
Clear Schematic Diagrams: Printed diagrams on the panel guide correct star and delta connections for easy setup.
-
Comprehensive Terminals: Features phase terminals (Ph₁, Ph₂, Ph₃) and a neutral terminal (N) for complete wiring flexibility.
-
Safety Connections: Equipped with Φ4mm safety sockets for secure and reliable wiring.
-
Robust Ratings: Supports a maximum voltage of 400V and a maximum current of 10A.
-
Compact & Lightweight: Measures 240 x 170 x 90 mm and weighs only 0.5kg for benchtop convenience.
-
Industrial-Grade Construction: Built to withstand demanding environments in industrial, commercial, and educational settings.
