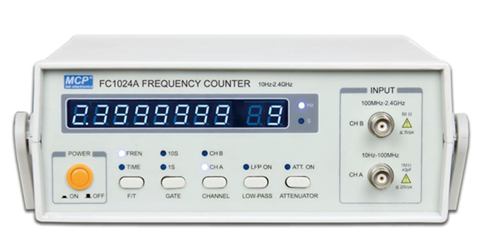

FC1024A MULTIFUNCTION COUNTER & GENERATOR
BDT 10,816/-
Product Details
Brand: MCP
Model: FC1024A
Country Of Origin: China
Features
-
8-digit LED display
-
Measurement range up to 2.4GHz (Channel B)
-
Low-pass filter for low-frequency measurement
-
Dual-channel input
| Function: | Frequency, Period |
| Frequency Range: | 10Hz–100MHz (CH A) |
| Period Range: | 100ns–1s (CH A) |
| Sensitivity: | 35mV (1–20Hz), 20mV (20Hz–100MHz) |
| Max Input Voltage: | 250V (CH A, 1/20 attenuation) |
| Input Impedance: | 1MΩ (CH A) |
| Channel A LPF: | –3dB bandwidth ≈100kHz |
| Channel A Attenuation: | 0dB/20dB |
| Coupling Mode: | AC |
| Measurement Error: | ±1×10⁻⁵ |
| Gate Time: | 1s, 10s |
| Power Source: | 220V ±10%, 50Hz ±5% |
| Dimensions: | 230×85×240mm |
| Weight: | 1.5kg |
2.4 GHz Dual-Channel Frequency Counter
A compact bench counter for measuring frequency and period, with two inputs: Channel A for general signals up to 100 MHz and Channel B for high-frequency signals up to 2.4 GHz. A bright 8-digit LED display keeps readings easy to see, and a built-in low-pass filter helps with noisy low-frequency signals.
Use it for: electronics teaching labs, repair benches, radio and communications work, oscillator checks, and general frequency testing.
You can:
Measure frequency from 10 Hz to 100 MHz on Channel A, and up to 2.4 GHz on Channel B
Measure period from 100 ns to 1 s on Channel A
Read results on the 8-digit LED display
Switch on the low-pass filter (about 100 kHz) to reduce noise on low-frequency signals
Use the 0 dB / 20 dB attenuator to handle larger signals, up to 250 V (at 20 dB)
Choose a gate time of 1 s or 10 s for faster readings or finer resolution
Key specs:
Channel A: 1 MΩ input, AC coupled, sensitivity 20 mV (20 Hz to 100 MHz) and 35 mV (1 to 20 Hz)
Measurement error: ±1×10⁻⁵
Specs: 220 V ±10% (50 Hz), 230 × 85 × 240 mm, 1.5 kg.
The FC1024A/FC1026A frequency counters are precision instruments designed for accurate frequency and period measurement. The FC1024A covers 10Hz–100MHz with dual sensitivity ranges and a built-in low-pass filter, while the FC1026A extends measurement capability up to 2.4GHz for high-frequency applications. Featuring an 8-digit LED display, dual-channel inputs, and high measurement accuracy, these counters are ideal for laboratories, RF testing, and educational environments requiring reliable frequency analysis.
