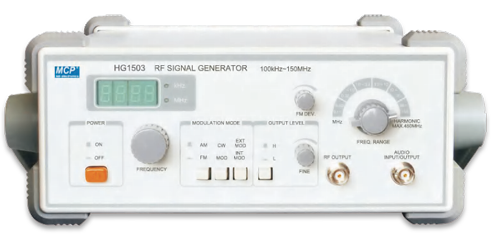

HG1503 AUDIO GENERATOR & RF GENERATOR
BDT 36,260/-
Product Details
Brand: MCP
Model: HG1503
Country Of Origin: China
Features
-
Frequency coverage: 100kHz–150MHz (harmonics up to 450MHz)
-
Continuously adjustable output level
-
AM and FM modulation functions
-
Four-digit output frequency display
-
High amplitude stability with ALC (automatic level control)
-
Microprocessor-controlled, multifunction, easy operation
-
Compact design, high reliability (MTBF ≥3000 hours)
Technical Data
-
Output Frequency: 100kHz–150MHz (harmonics up to 450MHz), 6 ranges
-
Output Amplitude: 0–60mVrms, 2 ranges
-
Output Impedance: 50Ω
-
Modulation: AM, FM
-
Internal Modulation: 1kHz
-
External Modulation: 50Hz–20kHz
-
Audio Signal Output: >1.5Vrms, 1kHz sine, distortion <3%
-
Power Supply: 110–127VAC ±10% / 220–240VAC ±10%, 50/60Hz ±2Hz
-
Dimensions: 295×110×280mm
-
Weight: 3kg
| Output Frequency: | 100kHz–150MHz (harmonics up to 450MHz), 6 ranges |
| Output Amplitude: | 0–60mVrms, 2 ranges |
| Output Impedance: | 50Ω |
| Modulation: | AM, FM |
| Internal Modulation: | 1kHz |
| External Modulation: | 50Hz–20kHz |
| Audio Signal Output: | >1.5Vrms, 1kHz sine, distortion <3% |
| Power Supply: | 110–127VAC ±10% / 220–240VAC ±10%, 50/60Hz ±2Hz |
| Dimensions: | 295×110×280mm |
| Weight: | 3kg |
Features
-
Frequency coverage: 100kHz–150MHz (harmonics up to 450MHz)
-
Continuously adjustable output level
-
AM and FM modulation functions
-
Four-digit output frequency display
-
High amplitude stability with ALC (automatic level control)
-
Microprocessor-controlled, multifunction, easy operation
-
Compact design, high reliability (MTBF ≥3000 hours)
Technical Data
-
Output Frequency: 100kHz–150MHz (harmonics up to 450MHz), 6 ranges
-
Output Amplitude: 0–60mVrms, 2 ranges
-
Output Impedance: 50Ω
-
Modulation: AM, FM
-
Internal Modulation: 1kHz
-
External Modulation: 50Hz–20kHz
-
Audio Signal Output: >1.5Vrms, 1kHz sine, distortion <3%
-
Power Supply: 110–127VAC ±10% / 220–240VAC ±10%, 50/60Hz ±2Hz
-
Dimensions: 295×110×280mm
-
Weight: 3kg
The HG1503 RF Signal Generator is a versatile and reliable instrument designed for RF testing and development. Covering frequencies from 100kHz to 150MHz (harmonics up to 450MHz), it provides stable and precise signals with AM/FM modulation capability. Featuring microprocessor control, automatic level control for amplitude stability, and a clear four-digit frequency display, the HG1503 ensures ease of use and accuracy. Compact and durable, it is ideal for laboratories, educational environments, and RF circuit testing applications.
