JL-02 FREQUENCY METER
BDT 8,397/-
Product Details
Brand: MCP
Model: JL-02
Country Of Origin: China
Feature
.Compact size
.Easy operation and stable work
. Safety sockets and high reliability
.Novel design and various types for you
| Function: | Frequency Meter |
| Type: | Reed |
| Range: | 45~55Hz (220V AC), 55~65Hz (220V AC) |
| Accuracy: | 1.0% |
| Terminals: | VA, N (for both ranges) |
| Application: | AC power line frequency monitoring |

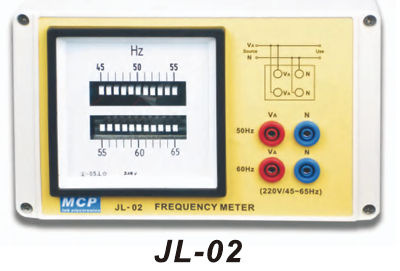

The MCP JL-02 Reed Frequency Meter is a reliable, panel-mounted instrument designed for accurate monitoring of AC power line frequency across two distinct ranges. As part of the JL Series, this reed-type meter features a unique dual-scale display covering 45~55Hz and 55~65Hz, specifically calibrated for 220V AC systems. Unlike traditional analog meters, the JL-02 uses vibrating reed indicators that provide a clear, instantaneous visual reading of the frequency without needing a pointer. It delivers dependable accuracy of 1.0%, making it ideal for monitoring frequency stability in generators, motors, power distribution panels, and laboratory experiments. The JL-02 features a sturdy, simple design with a clear wiring diagram printed directly on the front panel, along with separate clearly labeled terminals (VA, N) for both the 50Hz and 60Hz ranges. Its compact, panel-mount form factor makes it a perfect fit for control panels, switchboards, and educational setups.
MCP JL-02 Reed Frequency Meter – Dual Range 45~65Hz Panel Meter for AC Power Monitoring
Monitor AC power line frequency with precision and reliability using the MCP JL-02, a professional-grade reed frequency meter designed for panel-mount applications. As a key model in the JL Series, this instrument is ideal for electricians, engineers, and technicians who require dependable frequency monitoring in generators, motors, power distribution, and laboratory environments.
Key Features & Benefits:
-
Dual Frequency Ranges: Covers both 45~55Hz and 55~65Hz ranges, providing versatility for 50Hz and 60Hz power systems.
-
Reed-Type Display: Utilizes vibrating reed indicators for a clear, instantaneous visual reading of the frequency without a traditional pointer.
-
High Accuracy: Delivers reliable readings with 1.0% accuracy for dependable frequency monitoring.
-
220V AC Calibration: Optimized for standard 220V AC power systems.
-
Easy Installation: Includes a clear wiring diagram and separate labeled terminals (VA, N) for both the 50Hz and 60Hz ranges directly on the front panel.
-
Durable Construction: Built with a sturdy, panel-mount design for laboratory, industrial, and educational environments.
-
Compact Form Factor: Space-saving design ideal for control panels, switchboards, and generator monitoring systems.
