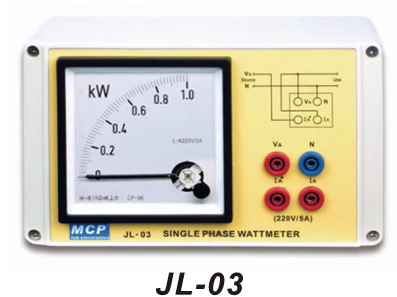

JL-03 SINGLE PHASE WATTMETER
BDT 10,966/-
Product Details
Brand: MCP
Model: JL-03
Country Of Origin: China
Feature
.Compact size
.Easy operation and stable work
. Safety sockets and high reliability
.Novel design and various types for you
| Function: | Wattmeter |
| Type: | Single Phase |
| Range: | 0~1kW (L-N 220V/5A) |
| Accuracy: | 1.5% |
| Terminals: | VA, N, IA, IA |
The MCP JL-03 Single Phase Analog Wattmeter is a reliable, panel-mounted instrument designed for accurate measurement of active power in single-phase AC circuits. As part of the JL Series, this analog wattmeter features a clear, easy-to-read dial with a measurement range of 0~1kW, specifically calibrated for L-N 220V/5A systems. It delivers dependable accuracy of 1.5%, making it ideal for monitoring power consumption in motors, power distribution panels, laboratory experiments, and educational setups. The JL-03 features a sturdy, simple design with a clear wiring diagram printed directly on the front panel, along with clearly labeled terminals (VA, N, IA, IA) for straightforward installation. Its compact, panel-mount form factor makes it a perfect fit for control panels, switchboards, and energy monitoring systems.
MCP JL-03 Single Phase Analog Wattmeter – 0~1kW Panel Meter for AC Power Measurement
Measure single-phase AC power with precision and reliability using the MCP JL-03, a professional-grade analog wattmeter designed for panel-mount applications. As a key model in the JL Series, this instrument is ideal for electricians, engineers, and technicians who require dependable power measurement in motors, power distribution, and laboratory environments.
Key Features & Benefits:
-
Dedicated Single-Phase Measurement: Specifically designed to measure active power in single-phase AC circuits.
-
Clear Measurement Range: Measures 0~1kW with a calibration of L-N 220V/5A, ideal for standard single-phase power systems.
-
High Accuracy: Delivers reliable readings with 1.5% accuracy for dependable power monitoring.
-
Clear Analog Display: Features an easy-to-read dial with clearly marked power increments (0, 0.2, 0.4, 0.6, 0.8, 1.0 kW).
-
Easy Installation: Includes a clear wiring diagram and labeled terminals (VA, N, IA, IA) directly on the front panel for quick setup.
-
Durable Construction: Built with a sturdy, panel-mount design for laboratory, industrial, and educational environments.
-
Compact Form Factor: Space-saving design ideal for control panels, switchboards, and energy monitoring systems.
