JL-05 PORTABLE POWER FACTOR METER
BDT 9,542/-
Product Details
Brand: MCP
Model: JL-05
Country Of Origin: China
Feature
.Compact size
.Easy operation and stable work
. Safety sockets and high reliability
.Novel design and various types for you
| Function: | Power Factor Meter |
| Type: | Three Phase |
| Range: | 0.5~1~0.5 (380V/5A) |
| Accuracy: | 2.5% |
| Terminals: | VA, VC, IA, IA |

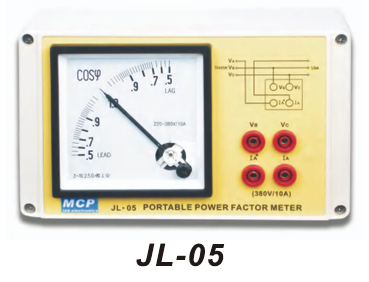

The MCP JL-05 Portable Power Factor Meter is a reliable, panel-mounted instrument designed for accurate measurement of power factor in three-phase AC circuits. As part of the JL Series, this meter features a clear, easy-to-read dial with a measurement range of 0.5~1~0.5, specifically calibrated for 380V/5A systems (with a dial rating of 220-380V/10A). It delivers dependable accuracy of 2.5%, making it ideal for monitoring power factor in three-phase motors, industrial power distribution panels, laboratory experiments, and educational setups. The JL-05 features a sturdy, simple design with a clear wiring diagram printed directly on the front panel, along with clearly labeled terminals (VA, VC, IA, IA) for straightforward installation. The dial includes both LAG (inductive) and LEAD (capacitive) indicators for comprehensive power factor analysis. Its compact, panel-mount form factor makes it a perfect fit for control panels, switchboards, and industrial energy monitoring systems.
MCP JL-05 Portable Power Factor Meter – Three Phase 0.5~1~0.5 Panel Meter
Monitor three-phase power factor with precision and reliability using the MCP JL-05, a professional-grade power factor meter designed for panel-mount applications. As a key model in the JL Series, this instrument is ideal for electricians, engineers, and technicians who require dependable power factor measurement in three-phase motors, industrial power distribution, and laboratory environments.
Key Features & Benefits:
-
Dedicated Power Factor Measurement: Specifically designed to measure power factor (COSφ) in three-phase AC circuits.
-
Clear Measurement Range: Measures 0.5~1~0.5 with a calibration of 380V/5A (dial rating 220-380V/10A), ideal for standard three-phase power systems.
-
High Accuracy: Delivers reliable readings with 2.5% accuracy for dependable power factor monitoring.
-
LAG/LEAD Indicators: The dial clearly indicates both inductive (LAG) and capacitive (LEAD) power factor conditions.
-
Easy Installation: Includes a clear wiring diagram and labeled terminals (VA, VC, IA, IA) directly on the front panel for quick setup.
-
Durable Construction: Built with a sturdy, panel-mount design for laboratory, industrial, and educational environments.
-
Compact Form Factor: Space-saving design ideal for control panels, switchboards, and industrial energy monitoring systems.
