JL-103 THREE PHASE ELECTRIC METER
BDT 20,616/-
Product Details
Brand: MCP
Model: JL-103
Country Of Origin: China
Feature
The JL-101 single phase electric meter and the JL-103 three phase electric meter can real-time measure and display the electric parameters of electric circuits such as current, voltage frequency, power (active power, reactive power, apparent power), power factor and so on in AC circuit. It can be mainly used in any low-voltage experiments such as basic AC circuit, motor, AC power distribution, new energy technology and etc.
| Function: | Three Phase Electric Meter |
| Accuracy: | ±0.2% (V, A, Hz, W, VA, PF), ±2.0% (var) |
| Display: | 3-row 4-tube LED screen |
| Input Line: | 3-phase 3-wire, 3-phase 4-wire |
| Voltage: | AC3*240V/415V |
| Current: | AC 5A max |
| Frequency: | 45~65Hz |
| Power Supply: | AC 85V~264V |
| Interface: | RS232 (optional) |
| Measured Parameters: | Voltage, Current, Frequency, Active Power, Reactive Power, Apparent Power, Power Factor |

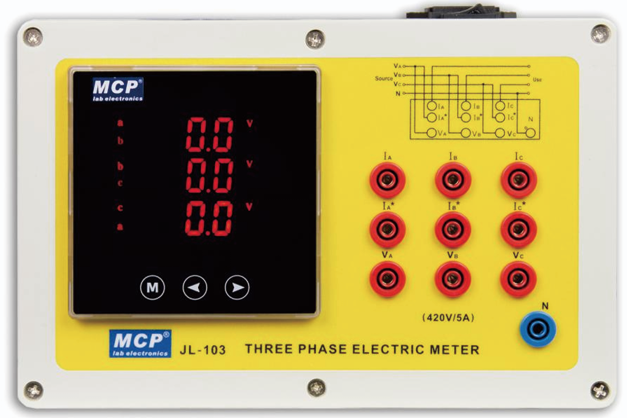

The MCP JL-103 Three Phase Electric Meter is a high-precision, digital instrument designed for real-time measurement and display of electrical parameters in three-phase AC circuits. Part of the JL100 Series, this meter accurately measures voltage, current, frequency, active power, reactive power, apparent power, and power factor across all three phases. It features a clear 3-row, 4-tube LED screen with phase indicators (a, b, c) for easy reading and offers exceptional accuracy of ±0.2% for most parameters (voltage, current, frequency, active power, apparent power, power factor) and ±2.0% for reactive power. The JL-103 supports both 3-phase 3-wire and 3-phase 4-wire input configurations with a voltage range of AC 3*240V/415V and a maximum current of 5A, operating at 45~65Hz. It is powered by an AC 85V~264V supply and includes an optional RS232 interface for data communication. The front panel features a comprehensive wiring diagram and clearly labeled terminals (IA, IB, IC, IA', IB', IC', VA, VB, VC, N) for straightforward installation. Ideal for low-voltage experiments, motor testing, AC power distribution, and new energy technology applications.
MCP JL-103 Three Phase Electric Meter – High Precision Digital Power Meter
Monitor and analyze three-phase electrical parameters with exceptional accuracy using the MCP JL-103, a professional-grade electric meter designed for real-time measurement and display. As a key model in the JL100 Series, this instrument is ideal for engineers, technicians, and educators working with three-phase AC circuits, motors, power distribution, and new energy technology.
Key Features & Benefits:
-
Comprehensive Three-Phase Measurement: Real-time measures and displays voltage, current, frequency, active power, reactive power, apparent power, and power factor across all three phases (a, b, c).
-
High Accuracy: Delivers exceptional precision with ±0.2% accuracy for voltage, current, frequency, active power, apparent power, and power factor (±2.0% for reactive power).
-
Clear Digital Display: Features a 3-row, 4-tube LED screen with phase indicators for easy, instant readings of multiple parameters.
-
Flexible Input Configuration: Supports both 3-phase 3-wire and 3-phase 4-wire systems with AC voltage up to 3*240V/415V and AC current up to 5A, operating at 45~65Hz.
-
Optional RS232 Interface: Enables data communication and integration with monitoring systems.
-
Flexible Power Supply: Operates on an AC power supply of 85V~264V.
-
Easy Installation: Includes a clear wiring diagram and labeled terminals (IA, IB, IC, IA', IB', IC', VA, VB, VC, N) directly on the front panel.
-
Durable Construction: Built with a sturdy, panel-mount design for laboratory, industrial, and educational environments.
