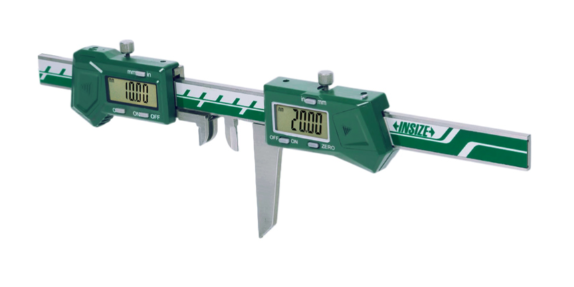

KEYWAY SYMMETRY DIGITAL CALIPER
BDT 70,776/-
Product Details
Brand: INSIZE
Model: 1531-60
Country Of Origin: China
Features:
Non waterproof
Used to measure the symmetry of shaft keyways
Resolution: 0.01mm/0.0005"
Buttons: on/off, zero, mm/inch
Automatic power off, move the digital unit to turn on power
Battery CR2032, data output
Made of stainless steel
Optional accessory: wireless transmitter code 7315-22 (receiver is needed)
| Type: | Keyway Symmetry Digital Caliper |
| Width of Keyway: | 6-45mm |
| Diameter of Shaft: | Ø10-120mm |
| Accuracy: | ±0.05mm |
| Resolution: | 0.01mm / 0.0005" |
| Material: | Stainless Steel |
| Battery: | CR2032 |
| Buttons: | on/off, zero, mm/inch |
| Data Output: | Yes |
| Waterproof: | No |
| Overall Length: | 280mm |
The INSIZE 1531-60 Keyway Symmetry Digital Caliper is a specialized precision measuring instrument designed specifically to measure the symmetry of shaft keyways. By taking measurements on both sides of the keyway (turning the caliper 180° between measurements), users can easily determine if the slot is centered, offset, or warped. Made of durable stainless steel, the 1531-60 is designed for shafts with diameters from Ø10-120mm and can measure keyway widths from 6-45mm. It offers a resolution of 0.01mm/0.0005" and an accuracy of ±0.05mm. Unlike its larger counterpart (1531-200), this model features jaws that are specifically sized to directly measure the keyway width. The caliper includes on/off, zero, and mm/inch buttons, automatic power-off, and data output (compatible with an optional wireless transmitter, 7315-22).
INSIZE 1531-60 Keyway Symmetry Digital Caliper – Precision Shaft Measurement
Ensure perfect fits for gears, pulleys, and couplings with the INSIZE 1531-60 Keyway Symmetry Digital Caliper. Designed specifically for machinists, engineers, and quality control inspectors, this specialized instrument solves the challenging task of verifying keyway symmetry and width on cylindrical shafts.
Key Features & Benefits:
-
Dedicated Keyway Measurement: Uniquely designed jaws allow you to measure the keyway width and check for symmetry (offset or warpage) by measuring from both sides of the shaft.
-
Suitable for Various Shafts: Specifically calibrated for shafts with a diameter of Ø10-120mm and keyway widths of 6-45mm.
-
High Precision: Delivers reliable measurements with an accuracy of ±0.05mm and a resolution of 0.01mm/0.0005".
-
Durable Construction: Made of high-quality stainless steel to withstand demanding machine shop environments.
-
Data Output: Supports data output for recording and analysis, compatible with an optional wireless transmitter (7315-22).
-
User-Friendly Functions: Includes on/off, zero, and mm/inch conversion buttons, along with automatic power-off to conserve battery.
-
Reliable Power: Powered by a standard CR2032 battery.
