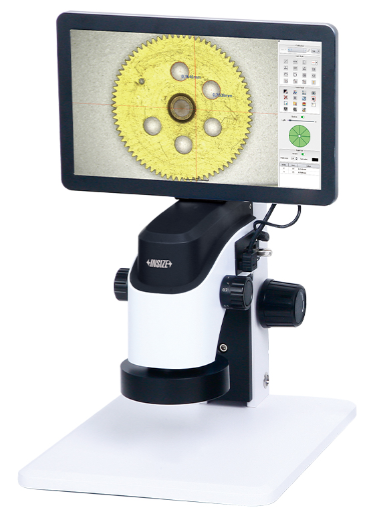

Large Depth Of View Digital Measuring Microscopes (Advanced Type)
BDT 0/-
Product Details
Brand: INSIZE
Model: 5322-ID250A
Country Of Origin: China
Features:
Electronic magnification feedback lens: when the objective lens magnification is changed manually, the software automatically selects the corresponding pre-calibration data and calibration is not needed
Send photos and measurement data via ethernet (TCP/IP)
Digital magnification
Can be connected to display and computer at the same time
Take pictures, save to USB flash disk
Measuring results can be sent to Excel
| Sensor: | 1/2" CMOS, 2M Pixel |
| Resolution: | 1920Ã1080 (60fps) |
| Magnification: | 12X~77X |
| View Field: | 3.2Ã1.8~20.9Ã11.7mm |
| Max. Workpiece Height: | 53mm |
| Dimensions: | 260Ã320Ã500mm |
| Net Weight: | 5.2kg |
The INSIZE 5322-ID250A Large Depth of View Digital Measuring Microscope (Advanced Type) is a state-of-the-art, standalone optical inspection system engineered for high-magnification, high-precision measurements. Featuring an 11.6-inch LCD monitor with an adjustable display angle and built-in software, it allows operators to perform complex measurements and image captures directly on the screen without requiring a computer.
A standout feature is the Electronic Magnification Feedback Lens. When the user manually adjusts the objective magnification (0.7X~4.5X), the software automatically detects the change and applies the corresponding pre-calibration data, eliminating the need for manual recalibration. It also supports Focus Stacking to create perfectly sharp images of parts with significant height variations. With an eight-zone LED ring light, TCP/IP Ethernet connectivity for sending data (including to Excel), and simultaneous display/computer operation, the 5322-ID250A provides exceptional flexibility and workflow efficiency for quality control, electronics inspection, and precision engineering.
INSIZE 5322-ID250A Advanced Digital Measuring Microscope – Precision 1080P Inspection
Elevate your quality control and microscopic inspection processes with the INSIZE 5322-ID250A Large Depth of View Digital Measuring Microscope. Designed as an "Advanced Type" system, it combines high-resolution optics, intuitive standalone software, and intelligent features like electronic magnification feedback and focus stacking to deliver an unparalleled metrology experience.
Key Features & Benefits:
-
Intelligent Magnification: The electronic magnification feedback lens revolutionizes workflow. When you manually adjust the 0.7X~4.5X objective, the software instantly applies the correct pre-calibration data, ensuring accurate measurements without the need for tedious recalibration.
-
Large Depth of View & Focus Stacking: Perfect for inspecting parts with varying heights. The system captures multiple focal planes and stitches them into one fully focused image, revealing top and bottom details simultaneously.
-
Versatile Dual-Mode Operation: Operate the system entirely standalone using the included 11.6" LCD monitor and built-in software. For advanced analysis, connect it to a PC via HDMI, USB, or LAN to run the professional computer software simultaneously.
-
Precision Measurement: Achieve measuring accuracy ranging from ±9µm down to ±5µm depending on the magnification. The system features a robust 1/2" CMOS sensor providing 1080P resolution at 60fps.
-
Advanced Illumination: The programmable, eight-zone LED ring light allows you to perfectly illuminate any surface, highlighting critical edges and eliminating glare.
-
Seamless Data Management: Transmit photos and measurement data over your network via Ethernet (TCP/IP) or save directly to the included 16G USB flash disk. Results can also be exported to Excel.
