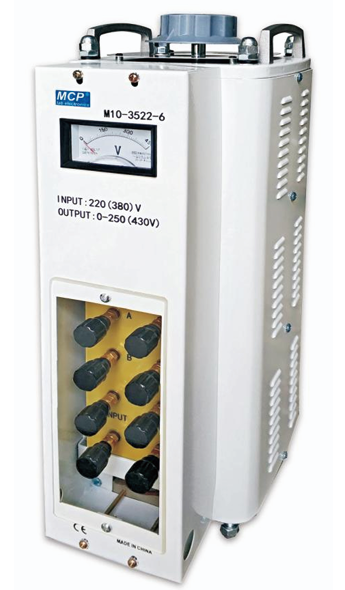

M10-3522-06 THREE PHASE VARIAC
BDT 40,370/-
Product Details
Brand: MCP
Model: M10-3522-06
Country Of Origin: China
Features
-
Three‑phase input and output
-
High efficiency and convenient operation
-
Optional digital meter
Specifications
| Model | Input Voltage | Output Voltage | Max. Power (VA) | Max. Current | Dimensions (W × H × D) | Weight |
|---|---|---|---|---|---|---|
| M10‑3522‑03 | 220(380)VAC | 0–250(430)VAC | 3000 (3×1000) | 3×4A | 230×182×430mm | 19kg |
| M10‑3522‑06 | 220(380)VAC | 0–250(430)VAC | 6000 (3×2000) | 3×8A | 230×182×550mm | 26kg |
| M10‑3522‑09 | 220(380)VAC | 0–250(430)VAC | 9000 (3×3000) | 3×12A | 260×210×550mm | 33kg |
| M10‑3522‑15 | 220(380)VAC | 0–250(430)VAC | 15000 (3×5000) | 3×20A | 390×355×605mm | 70kg |
| M10‑3522‑20 | 220(380)VAC | 0–250(430)VAC | 20000 (3×6600) | 3×25A | 390×355×605mm | 90kg |
| M10‑3522‑30 | 220(380)VAC | 0–250(430)VAC | 30000 (3×10000) | 3×40A | 410×450×900mm | 150kg |
| M10‑3511‑03 | 100(175)VAC | 0–130(225)VAC | 3000 (3×1000) | 3×8A | 230×182×550mm | 26kg |
| M10‑3511‑06 | 100(175)VAC | 0–130(225)VAC | 6000 (3×2000) | 3×16A | 260×210×550mm | 33kg |
| M10‑3511‑09 | 100(175)VAC | 0–130(225)VAC | 9000 (3×3000) | 3×24A | 280×245×720mm | 50kg |
| M10‑3511‑15 | 100(175)VAC | 0–130(225)VAC | 15000 (3×5000) | 3×40A | 390×355×605 |
| Input Voltage: | 220(380)VAC |
| Output Voltage: | 0–250(430)VAC |
| Max. Power (VA): | 6000 (3×2000) |
| Max. Current: | 3×8A |
| Dimensions (W × H × D): | 230×182×550mm |
| Weight: | 26kg |
Features
-
Three‑phase input and output
-
High efficiency and convenient operation
-
Optional digital meter
Specifications
| Model | Input Voltage | Output Voltage | Max. Power (VA) | Max. Current | Dimensions (W × H × D) | Weight |
|---|---|---|---|---|---|---|
| M10‑3522‑03 | 220(380)VAC | 0–250(430)VAC | 3000 (3×1000) | 3×4A | 230×182×430mm | 19kg |
| M10‑3522‑06 | 220(380)VAC | 0–250(430)VAC | 6000 (3×2000) | 3×8A | 230×182×550mm | 26kg |
| M10‑3522‑09 | 220(380)VAC | 0–250(430)VAC | 9000 (3×3000) | 3×12A | 260×210×550mm | 33kg |
| M10‑3522‑15 | 220(380)VAC | 0–250(430)VAC | 15000 (3×5000) | 3×20A | 390×355×605mm | 70kg |
| M10‑3522‑20 | 220(380)VAC | 0–250(430)VAC | 20000 (3×6600) | 3×25A | 390×355×605mm | 90kg |
| M10‑3522‑30 | 220(380)VAC | 0–250(430)VAC | 30000 (3×10000) | 3×40A | 410×450×900mm | 150kg |
| M10‑3511‑03 | 100(175)VAC | 0–130(225)VAC | 3000 (3×1000) | 3×8A | 230×182×550mm | 26kg |
| M10‑3511‑06 | 100(175)VAC | 0–130(225)VAC | 6000 (3×2000) | 3×16A | 260×210×550mm | 33kg |
| M10‑3511‑09 | 100(175)VAC | 0–130(225)VAC | 9000 (3×3000) | 3×24A | 280×245×720mm | 50kg |
| M10‑3511‑15 | 100(175)VAC | 0–130(225)VAC | 15000 (3×5000) | 3×40A | 390×355×605 |
The M10‑3500 Series Three‑Phase Variac is a powerful and efficient voltage regulator designed for industrial, laboratory, and educational applications. With three‑phase input and output, it provides smooth and precise voltage adjustment across a wide range. Available in models from 3000VA to 30000VA, the series offers flexibility for different power requirements. Optional digital metering enhances usability, while robust construction ensures long‑term reliability. Ideal for motor testing, voltage regulation experiments, and heavy‑duty electronics applications.
