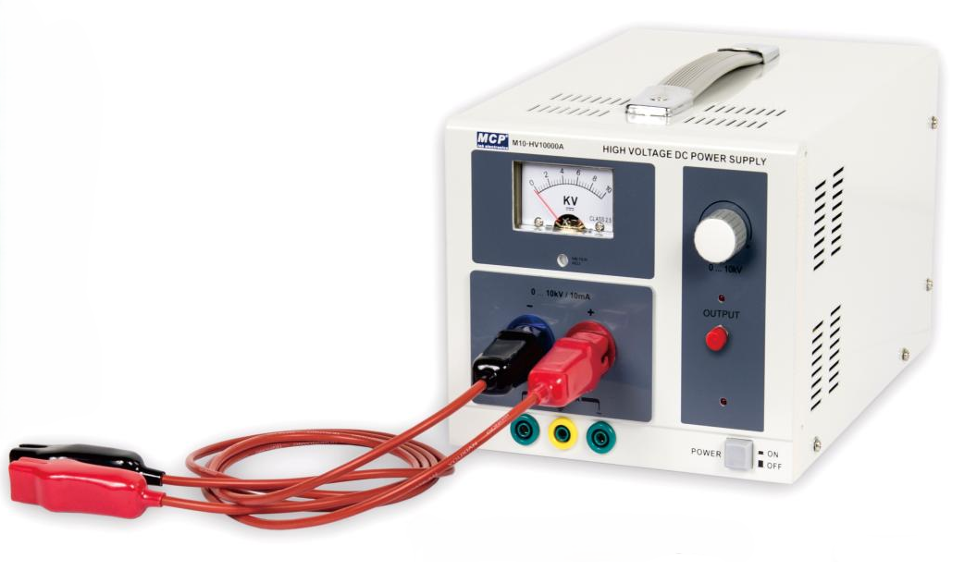

M10-HV10000A HIGH VOLTAGE POWER SUPPLY
BDT 42,264/-
Product Details
Brand: MCP
Model: M10-HV10000A
Country Of origin: China
Features
-
High‑voltage source for operation of electron tubes
-
High‑voltage test leads attached
-
Built‑in high‑voltage resistant transformer to supply filament for electron tubes
-
Continuously adjustable high voltage with passive current limit and voltage display
-
Floating and safe to touch
| Input voltage: | 220–240VAC ±10% 50Hz |
| Line regulation: | ≤0.1% |
| Load regulation: | ≤0.1% |
| Dimensions: | 170(W) × 160(H) × 250(D) mm |
| Weight: | 6kg |
High-Voltage Power Supply for Electron Tube Experiments
A safety-focused high-voltage source built for teaching and demonstrating electron tubes. It provides an adjustable high-voltage output with a passive current limit, a built-in isolated filament supply, and attached high-voltage test leads, so students can run tube experiments without a separate filament transformer. The output is floating and safe to touch, which makes it suitable for classroom use.
Use it for: physics and electronics teaching labs, electron tube (valve) demonstrations such as diodes, triodes, and cathode ray or Franck-Hertz style experiments, and tube circuit learning and repair training.
You can:
Adjust the high voltage continuously and read it on the voltage display
Rely on the passive current limit to keep the output safe if a circuit is shorted or overloaded
Heat tube filaments directly from the built-in high-voltage-resistant filament transformer
Connect quickly with the attached high-voltage test leads
Work safely, since the output is floating and safe to touch
Key specs:
Line regulation: ≤0.1%
Load regulation: ≤0.1%
Specs: 220-240 V (50 Hz) input, 170 × 160 × 250 mm, 6 kg.
The M10‑HV Series High Voltage Power Supply is designed for specialized applications requiring stable high‑voltage output, such as electron tube operation and advanced research experiments. The M10‑HV1000A model provides continuously adjustable high voltage with passive current limiting and a built‑in transformer for filament supply. With high‑voltage test leads, floating safe‑to‑touch design, and precise regulation, it ensures reliable and secure performance. Compact and robust, the M10‑HV Series is ideal for universities, research labs, and industrial environments working with high‑voltage electronics.
