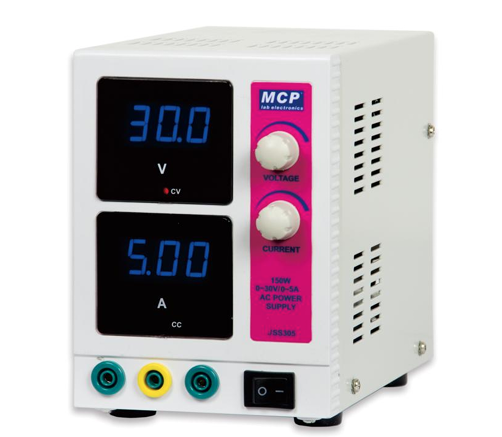

M10-JSS305 SWITCHING AC POWER SUPPLY
BDT 20,800/-
Product Details
Brand: MCP
Model: M10-JSS305
Country Of origin: China
Features
-
Constant voltage and constant current
-
AC power supply sine wave output
-
Voltage and current continuously adjustable
-
Output frequency switchable and line tracing
-
Max. output voltage: 30V
-
Max. output current: 5A
-
Max. output power: 150W
-
Light and compact construction
| Output voltage: | 2–30VAC RMS |
| Output current: | 0–5A |
| Voltage resolution: | 0.1V |
| Current resolution: | 10mA |
| Output frequency: | 50Hz, 60Hz (switchable or line tracing) |
| Output accuracy: | Frequency ±1% |
| Display accuracy: |
Voltmeter ±(1%Rdg + 2 digits) Ammeter ±(1%Rdg + 2 digits) |
| Input voltage: | 100–127VAC or 220–240VAC, 50Hz/60Hz |
| Dimensions: | 105(W) × 160(H) × 215(D) mm |
| Weight: | 2.2kg |
150 W CV/CC AC Power Supply (2-30 V, 5 A)
A compact low-voltage AC source with a clean adjustable sine wave and constant voltage and constant current operation. Set both voltage and current limit continuously, so you can test AC-powered equipment at low voltage and protect it from overcurrent, with no need to work on mains.
Use it for: testing transformers, small motors, relays, lamps, and adapters, electrical teaching labs, repair benches, product safety and aging tests, and R&D.
You can:
Adjust output continuously from 2 to 30 V AC RMS, in 0.1 V steps
Set the current limit from 0 to 5 A in 10 mA steps (150 W maximum), so the unit works in constant voltage or constant current mode
Switch the output frequency between 50 Hz and 60 Hz, or let it track the input line frequency
Read voltage and current on the display, each accurate to ±(1% of reading + 2 digits)
Move it easily between bench and classroom, thanks to its light, compact case
Key specs:
Output: 2-30 V AC RMS, 0-5 A, up to 150 W
Frequency: 50 Hz / 60 Hz (selectable or line tracking), accuracy ±1%
Resolution: 0.1 V and 10 mA
Specs: 100-127 V or 220-240 V (50/60 Hz) input, 105 × 160 × 215 mm, 2.2 kg.
The M10‑JSS305 AC Power Supply is a compact and efficient 150W solution designed for laboratory and industrial applications. It delivers a clean sine wave AC output with continuously adjustable voltage and current, plus switchable frequency (50Hz/60Hz or line tracing). With precise resolution, accurate digital metering, and lightweight construction, the M10‑JSS305 is ideal for electronics testing, research labs, and educational environments requiring stable AC power with flexible control.
