M21-3000 BASIC ELECTRICAL TRAINING SYSTEM
BDT 33,308/-
Product Details
Brand: MCP
Model: M21-3000
Country Of Origin: China
Features
-
High-level, high-quality digital-analog trainer
-
Combines essential functions for digital experiments
-
Includes DC power supply, IC sockets, pulse switches, data switches, LED data display, BCD display, and clock signal outputs
Specifications (M21-3000)
-
IC Sockets
-
6 IC 20-pin sockets
-
-
DC Power Supply
-
Fixed DC output: +5V, 1A
-
-
Sixteen-Bit Data Switches
-
16 toggle switches with corresponding output points
-
“Down” position = LO level; “Up” position = HI level
-
-
Sixteen-Bit LED Display
-
16 red LEDs with separate input terminals
-
LEDs light up at HI level and turn off at LO level or no input
-
-
Two Pulse Switches
-
Two pushbuttons with debouncing circuits
-
Outputs: (A, Ā, B, B̄)
-
-
Clock Signal Output
-
Two fixed frequencies: 1Hz and 8kHz
-
-
Two-Digit 7-Segment LED Display
-
Displays decimal numbers (0–15)
-
Supports segment identification (a–g) and BCD decoding
-
-
Accessories
-
Power cord
-
Pin cables: 10cm ×20pcs, 20cm ×20pcs
-
User manual
-
-
Input Voltage
-
110–127VAC ±10% (60Hz)
-
220–240VAC ±10% (50Hz) switchable
-
-
Dimensions
-
334×95×258mm
-
Weight
-
4.5kg
| IC Sockets | 6 IC 20-pin sockets |
| DC Power Supply | Fixed DC output: +5V, 1A |
| Sixteen-Bit Data Switches |
16 toggle switches with corresponding output points “Down” position = LO level; “Up” position = HI level |
| Sixteen-Bit LED Display |
16 red LEDs with separate input terminals LEDs light up at HI level and turn off at LO level or no input |
| Two Pulse Switches |
Two pushbuttons with debouncing circuits Outputs: (A, Ā, B, B̄) |
| Clock Signal Output | Two fixed frequencies: 1Hz and 8kHz |
| Two-Digit 7-Segment LED Display |
Displays decimal numbers (0–15) Supports segment identification (a–g) and BCD decoding |
| Accessories |
Power cord Pin cables: 10cm ×20pcs, 20cm ×20pcs User manual |
| Input Voltage |
110–127VAC ±10% (60Hz) 220–240VAC ±10% (50Hz) switchable |
| Dimensions | 334×95×258mm |
| Weight | 4.5kg |
Features
-
High-level, high-quality digital-analog trainer
-
Combines essential functions for digital experiments
-
Includes DC power supply, IC sockets, pulse switches, data switches, LED data display, BCD display, and clock signal outputs
Specifications (M21-3000)
-
IC Sockets
-
6 IC 20-pin sockets
-
-
DC Power Supply
-
Fixed DC output: +5V, 1A
-
-
Sixteen-Bit Data Switches
-
16 toggle switches with corresponding output points
-
“Down” position = LO level; “Up” position = HI level
-
-
Sixteen-Bit LED Display
-
16 red LEDs with separate input terminals
-
LEDs light up at HI level and turn off at LO level or no input
-
-
Two Pulse Switches
-
Two pushbuttons with debouncing circuits
-
Outputs: (A, Ā, B, B̄)
-
-
Clock Signal Output
-
Two fixed frequencies: 1Hz and 8kHz
-
-
Two-Digit 7-Segment LED Display
-
Displays decimal numbers (0–15)
-
Supports segment identification (a–g) and BCD decoding
-
-
Accessories
-
Power cord
-
Pin cables: 10cm ×20pcs, 20cm ×20pcs
-
User manual
-
-
Input Voltage
-
110–127VAC ±10% (60Hz)
-
220–240VAC ±10% (50Hz) switchable
-
-
Dimensions
-
334×95×258mm
-
Weight
-
4.5kg

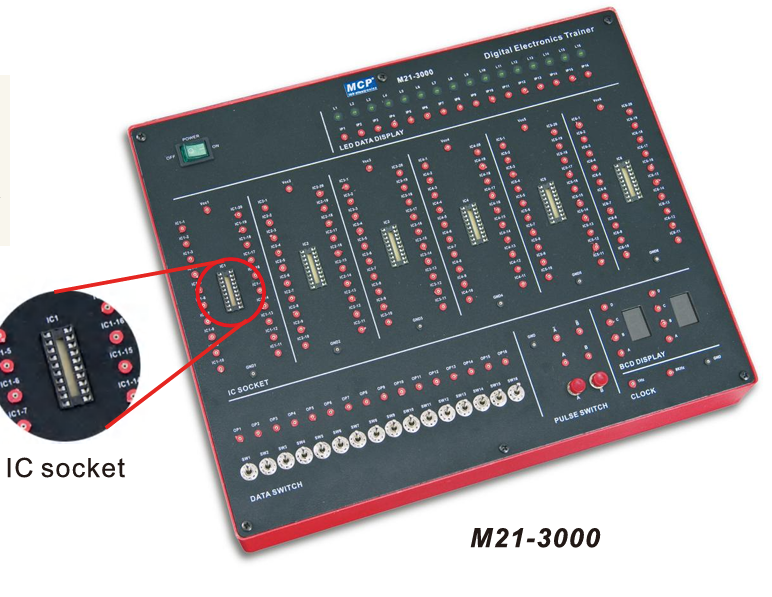

The M21-3000 Basic Electrical Training System is a high-level digital-analog trainer designed for comprehensive digital circuit experimentation. Equipped with IC sockets, data switches, LED indicators, pulse switches, and clock outputs, it enables students to study logic operations, timing, and signal behavior. With integrated +5V DC power supply and dual 7-segment displays, the M21-3000 is ideal for teaching digital electronics, logic design, and microprocessor fundamentals in technical institutes and engineering labs.
