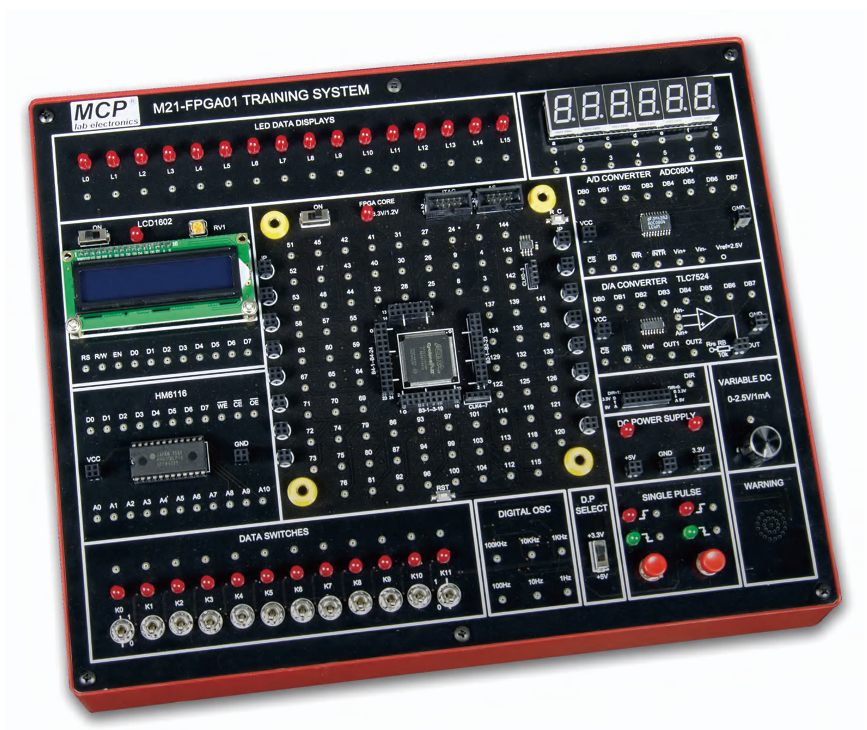

M21-FPGA01 FPGA TRAINING SYSTEM
BDT 38,778/-
Product Details
Brand: MCP
Model: M21-FPGA01
Country Of Origin: China
FPGA (Field Programmable Gate Array) is a semi‑custom circuit widely used in video image processing, communication, and digital signal processing. It offers fast speed, rich internal resources, and flexible configuration. The FPGA training system helps students and engineers learn FPGA programming, simulation, and debugging.
Features
-
High grade, high quality FPGA training device
-
Developed with FPGA model EP2C5T144 of CYCLONE II family (4068 programmable cells)
-
Equipped with external flash memory model EPC1S4 (1Mb)
-
Supports various basic FPGA experiments
-
Combined with 6 digits of 7 segment LED display, ADC, DAC, LCD 1602, HM6116
-
2mm high‑strength panel, double‑sided PCB with more than 200 self‑locking sockets fitting AWG#22 and #23 pins (~0.6mm) plus 16 sets of jumpers for multi‑contact
-
Use USB‑Blaster for serial port (AS) configuration or JTAG download, plug‑and‑play supported
-
Classic MCP housing case
| Chip | EP2C5T144 of CYCLONE II family |
| External flash memory mode | EPC1S4 (1Mb) |
| Combined with | 6 digits of 7 segment LED display, ADC, DAC, LCD 1602, HM6116 |
| USB‑Blaster | JTAG |
M21-FPGA01 FPGA Training System
A hands-on trainer for learning FPGA design. Write your logic, simulate it, download it over USB, and test it on the board with built-in switches, displays, converters, and memory.
Use it for: electronics and digital design courses, teaching labs, and engineers learning FPGA programming, simulation, and debugging.
You can:
Program the on-board Altera Cyclone II EP2C5T144 FPGA (4068 cells) with USB-Blaster, using AS or JTAG mode
Store configuration in the external EPC1S4 flash memory
Test designs with 12 data switches, 16 LEDs, a 6-digit 7-segment display, and an LCD 1602
Try analog interfacing with the 8-bit ADC (ADC0804) and DAC (TLC7524), and external RAM (HM6116)
Use clock sources from 1 Hz to 100 kHz, at 5 V or 3.3 V
Connect your own circuits through 200+ self-locking sockets and 16 sets of jumpers
Includes: trainer unit, power cord, pin leads, and experiment manual (CD-ROM).
Specs: built-in +5 V and +3.3 V supplies (0.5 A) with short-circuit and over-current protection and buzzer alert, 110-127 V / 220-240 V switchable, 334 × 95 × 258 mm, 2.5 kg.
The M21‑FPGA01 FPGA Training System is a professional educational platform for mastering FPGA programming and digital circuit design. Built on the Cyclone II EP2C5T144 device with 4068 programmable cells, it supports AS and JTAG download modes, on‑board simulation, and debugging. With integrated ADC, DAC, LCD, RAM, oscillators, LED displays, and USB‑Blaster programming, it provides a complete environment for students, teachers, and engineers to experiment with FPGA technology. Compact and reliable, the M21‑FPGA01 is ideal for classrooms, labs, and prototype development in digital signal processing, communication, and embedded systems.
