M50-SP305E SINGLE PROGRAMMABLE DC POWER SUPPLY
BDT 25,990/-
Product Details
Brand: MCP
Model: M50-SP305E
Country Of origin: China
Features
-
Single output
-
Output OFF function
-
LED digital display and setting
-
Standard USB interface
-
Constant voltage and constant current
-
Aluminium alloy panel
| Line regulation: |
CV 1×10−4+3mV CC 2×10−3+3mA |
| Load regulation: |
CV 1×10−4+4mV CC2×10−3+5mA |
| Ripple & noise: |
CV 3mVrms CC 3mArms |
| Display accuracy: |
Voltmeter ±(0.2%Rdg + 2 digits) Ammeter ±(1.0%Rdg + 2 digits) |
| Input voltage: | 110–127VAC ±10% 60Hz, 220–240VAC ±10% 50Hz (switchable) |
Single-Output CV/CC Bench DC Power Supply
A single-output bench power supply with constant voltage (CV) and constant current (CC) operation. Set and read voltage and current on the LED digital display, cut the output with the OFF function, and control the unit from a PC over the standard USB interface. An aluminium alloy panel gives it a solid, durable feel.
Use it for: electronics teaching labs, circuit prototyping, repair benches, battery and LED testing, production test, and R&D.
You can:
- Run in constant voltage mode, or limit current with constant current mode to protect your circuit
- Set and read voltage and current on the LED display
- Switch the output off instantly with the output OFF function, without disconnecting the load

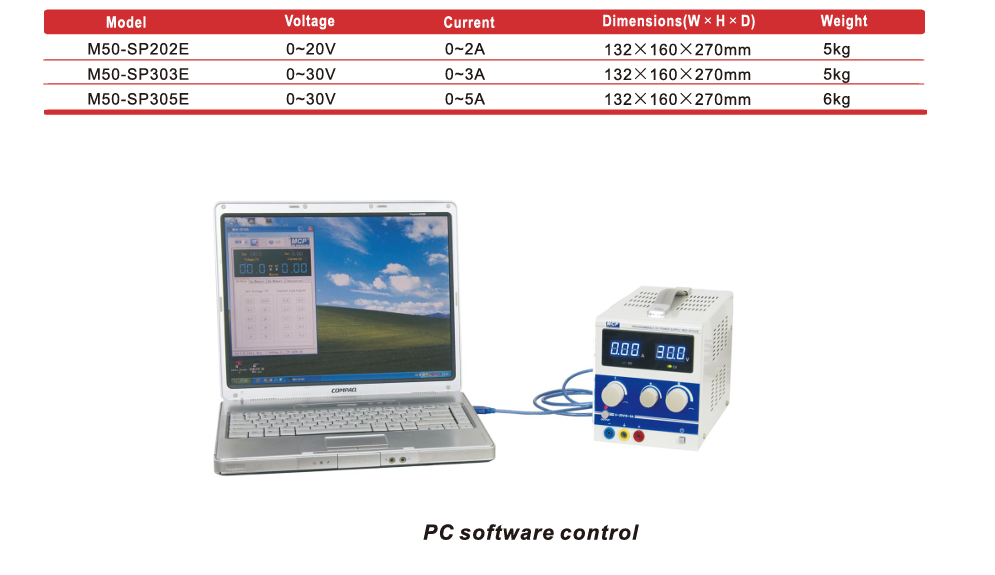

- Connect to a PC over USB for remote control
Key specs:
| CV mode | CC mode | |
|---|---|---|
| Line regulation | ≤1×10⁻⁴ + 3 mV | ≤2×10⁻³ + 3 mA |
| Load regulation | ≤1×10⁻⁴ + 4 mV | ≤2×10⁻³ + 5 mA |
| Ripple and noise | ≤3 mVrms | ≤3 mArms |
- Display accuracy: voltmeter ±(0.2% of reading + 2 digits), ammeter ±(1.0% of reading + 2 digits)
Specs: 110-127 V (60 Hz) / 220-240 V (50 Hz) switchable.
The M50‑SP305E Single Programmable DC Power Supply is a precision instrument designed for laboratory and industrial applications. It offers a single programmable output with constant voltage and constant current modes, ensuring stable and accurate performance. Equipped with an LED digital display, USB interface, and aluminium alloy panel, the M50‑SP305E combines durability with modern functionality. With low ripple and noise, reliable regulation, and output OFF control, it is ideal for research labs, universities, and electronics workshops requiring dependable programmable DC power.
