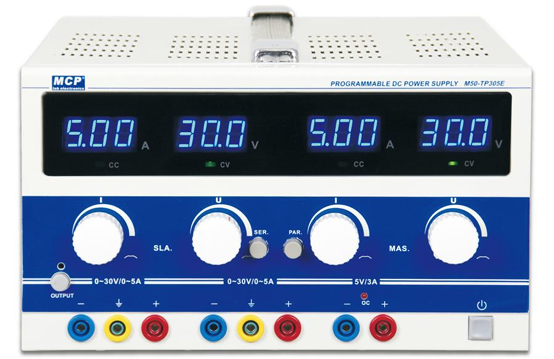

M50-TP305E TRIPLE-OUTPUTS PROGRAMMABLE DC POWER SUPPLY
BDT 45,791/-
Product Details
Brand: MCP
Model: M50-TP305E
Country Of origin: China
Features
-
Two adjustable outputs and one fixed output
-
Output OFF function
-
LED digital display and setting
-
Standard USB interface
-
Constant voltage and constant current
-
Aluminium alloy panel
| Line regulation: |
CV1×10−4+3mV CC2×10−3+3mA Fixed output: 10mV |
| Load regulation: |
CV1×10−4+4mV CC2×10−3+5mA Fixed output: 10mV |
| Ripple & noise: |
CV ≤ 3mVrms CC ≤ 3mArms Fixed output: 10mV |
| Fixed output accuracy: | 2.5% |
| Display accuracy: |
Voltmeter ±(0.2%Rdg + 2 digits) Ammeter ±(1.0%Rdg + 2 digits) |
| Input voltage: | 110–127VAC ±10% 60Hz, 220–240VAC ±10% 50Hz (switchable) |
Triple-Output CV/CC Bench DC Power Supply (2 Adjustable + 1 Fixed)
A bench power supply with two adjustable outputs and one fixed output. The adjustable channels run in constant voltage (CV) or constant current (CC) mode, with settings and readings on an LED digital display. An output OFF function, a standard USB interface for PC control, and an aluminium alloy panel make it practical and durable.
Use it for: electronics teaching labs, circuit prototyping, repair benches, battery and LED testing, production test, and R&D.
You can:
- Power up to three circuits at once from one unit
- Run the adjustable outputs in constant voltage mode, or limit current with constant current mode to protect your circuit
- Set and read voltage and current on the LED display
- Cut the output instantly with the output OFF function, without disconnecting the load
- Use the fixed output for logic and low-voltage circuits

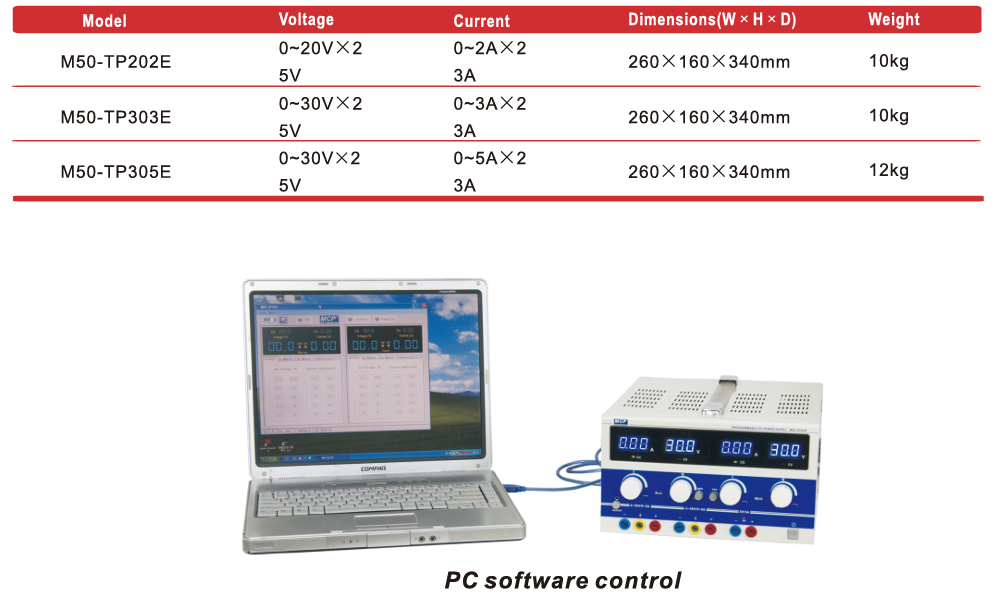

- Connect to a PC over USB for remote control
Key specs:
| Adjustable CV | Adjustable CC | Fixed output | |
|---|---|---|---|
| Line regulation | ≤1×10⁻⁴ + 3 mV | ≤2×10⁻³ + 3 mA | 10 mV |
| Load regulation | ≤1×10⁻⁴ + 4 mV | ≤2×10⁻³ + 5 mA | 10 mV |
| Ripple and noise | ≤3 mVrms | ≤3 mArms | 10 mV |
- Fixed output accuracy: 2.5%
- Display accuracy: voltmeter ±(0.2% of reading + 2 digits), ammeter ±(1.0% of reading + 2 digits)
Specs: 110-127 V (60 Hz) / 220-240 V (50 Hz) switchable.
Compared with the previous model: this version has two adjustable outputs and one fixed output, where the previous one had one adjustable and two fixed. The regulation and display specs are the same, but the fixed output is specified in mV (10 mV) rather than 1%.
The M50‑TP Triple‑Outputs Programmable DC Power Supply is a flexible and reliable instrument designed for laboratory and industrial applications. It provides two adjustable outputs and one fixed output, making it suitable for a wide range of electronics testing scenarios. With constant voltage and constant current modes, low ripple and noise, and precise regulation, it ensures stable performance. Equipped with LED digital displays, USB interface, and a durable aluminium alloy panel, the M50‑TP is ideal for universities, research labs, and electronics workshops requiring programmable multi‑output DC power.
