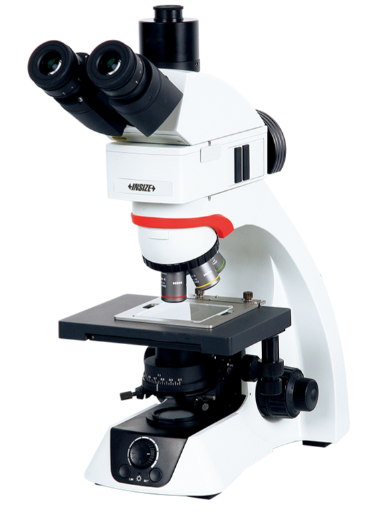

Metallurgical Microscope
BDT 0/-
Product Details
Brand: INSIZE
Model: 5113-M850
Country Of Origin: China
Features:
ECGO infinity two-way chromatic aberration calibration system
Built-in white LED, high color rendering index, long life time
The same dimmer knob controls the free switching of reflected and transmitted light
With anti-slip adjustable elastic and randomized upper limit device
| Eyepiece: | Large field 10X (Ã23mm) |
| Objectives: | 5X, 10X, 20X, 50X (Infinite Plan Achromatic) |
| Optical Magnification: | 50X~500X |
| Illumination: | Reflected and Transmitted White LED |
| Stage: | X-Y Double Layer (240Ã175mm) |
| Weight: | 18kg |
The INSIZE 5113-M850 Metallurgical Microscope is a high-precision optical instrument designed for advanced materials inspection, metallurgy, and quality control. At its core is the ECGO infinity two-way chromatic aberration calibration system, which ensures flat fields and accurate color reproduction for examining opaque specimens.
Equipped with infinite plan achromatic brightfield objectives (5X, 10X, 20X, 50X), it provides a standard optical magnification of 50X~500X. The microscope features a built-in white LED with a high color rendering index, and cleverly utilizes a single dimmer knob to seamlessly switch between reflected and transmitted illumination. The 30° hinged trinocular observation tube allows for ergonomic viewing and easy attachment of an optional camera. Built with a robust X-Y double-layer stage, an anti-slip focus mechanism, and a 0.5X camera adapter included as standard, the 5113-M850 is a complete, reliable workstation for professional materials analysis.
INSIZE 5113-M850 Metallurgical Microscope – Infinite Plan Achromatic Brightfield System
Achieve precise and accurate materials analysis with the INSIZE 5113-M850 Metallurgical Microscope. Engineered for quality control labs, manufacturing facilities, and academic research, this professional-grade upright microscope combines advanced ECGO infinity optics with intuitive illumination controls to deliver high-contrast, flat-field images of metal structures and opaque samples.
Key Features & Benefits:
-
Advanced ECGO Infinity Optics: The infinity two-way chromatic aberration calibration system ensures excellent image flatness, edge-to-edge sharpness, and true color reproduction, critical for metallurgical evaluation.
-
Smart Illumination Control: Equipped with a built-in white LED featuring a high color rendering index. A single, unified dimmer knob allows you to freely and smoothly switch between reflected (episcopic) and transmitted (diascopic) illumination, streamlining your workflow.
-
Ergonomic Trinocular Viewing: The 30° hinged trinocular observation tube accommodates a wide range of pupil distances (46~78mm) for maximum user comfort. It allows for simultaneous visual inspection and digital camera attachment.
-
Stable & Precise Mechanics: The X-Y double-layer mechanical stage (240×175mm) with 75×50mm travel provides smooth sample positioning. The coaxial coarse and fine focus mechanism features an anti-slip elastic device and a randomized upper limit to prevent sample or objective damage.
-
Ready for Digital Integration: Standard delivery includes a 0.5X camera adapter, making it simple to connect a digital camera for image capture and analysis.
