Metallurgical Microscope
BDT 375,968/-
Product Details
Brand: INSIZE
Model: 5114-M550
Country Of Origin: China
Features:
Infinite chromatic aberration correction optical system
With brightness memory function
Objective turret with five holes
| Eyepiece: | SWH10X-H (Ã23mm) |
| Objectives: | 5X, 10X, 20X, 50X (Infinite Semi-Apochromatic) |
| Optical Magnification: | 50X~500X (up to 1000X with optional 100X objective) |
| Illumination: | 10W Adjustable Reflected LED |
| Stage: | Double layer (215Ã160mm) |
| Net Weight: | 8kg |

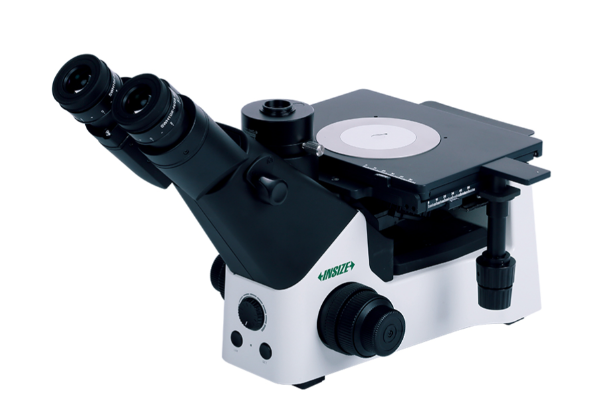

The INSIZE 5114-M550 Metallurgical Microscope is a compact, precision-engineered optical instrument designed for analyzing the microstructure of opaque materials. Featuring an infinite chromatic aberration correction optical system and semi-apochromatic brightfield objectives (5X, 10X, 20X, 50X), it delivers excellent image flatness, sharp contrast, and accurate color reproduction essential for metallurgical inspection.
The microscope is equipped with a 10W adjustable reflected LED illumination system featuring a brightness memory function to ensure consistent lighting conditions across sessions. Its trinocular observation tube (100:0 split) allows for simultaneous visual viewing and digital image capture via the included 0.5X camera adapter. Built on a sturdy double-layer mechanical stage (215×160mm) with a five-hole objective turret, the 5114-M550 is an ideal, reliable workstation for quality control labs, materials research, and manufacturing facilities.
INSIZE 5114-M550 Metallurgical Microscope – Compact & Precise Materials Inspection
Achieve accurate and reliable materials analysis with the INSIZE 5114-M550 Metallurgical Microscope. Designed for quality control labs, manufacturing floors, and educational institutions, this professional-grade upright microscope combines an infinite optical system with semi-apochromatic objectives to deliver clear, high-contrast images of metal structures and opaque specimens.
Key Features & Benefits:
-
Advanced Optical Clarity: Equipped with an infinite chromatic aberration correction system and semi-apochromatic brightfield objectives. This ensures exceptional image flatness, edge-to-edge sharpness, and accurate color reproduction, which is critical for evaluating grain structures and inclusions.
-
Consistent Illumination: Features 10W adjustable reflected LED illumination with a built-in brightness memory function. This ensures your preferred light intensity is instantly restored when you turn the unit on.
-
Trinocular Viewing Design: The trinocular observation tube (100:0 split) allows for comfortable visual inspection while simultaneously accommodating a digital camera for documentation and analysis.
-
Precision Mechanical Stage: A double-layer mechanical stage (215×160mm) with 50×50mm travel and a five-hole objective turret provides smooth, accurate sample positioning.
-
Ready for Digital Integration: Standard delivery includes a 0.5X camera adapter, making it simple to connect a digital camera. A wide range of optional software and accessories are available for advanced metallurgical analysis.
