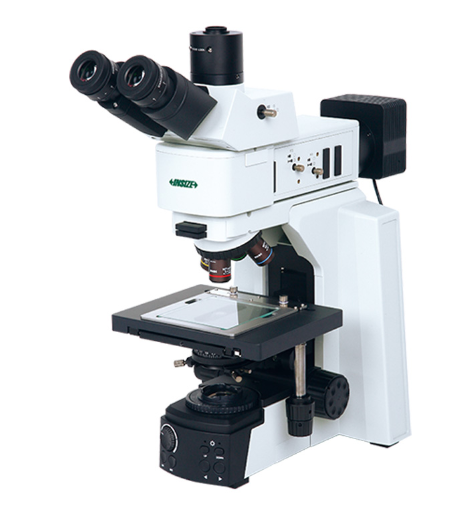

Metallurgical Microscope (Standard Type)
BDT 0/-
Product Details
Brand: INSIZE
Model: 5110-M900
Country Of Origin: China
Features:
Infinite chromatic aberration correction optical system
Three way observation tube with infinite hinge
Translucent and reflective frame, front low-hand position coarse and fine coaxial focus adjustment mechanism, with adjustment elastic device to prevent sliding and random upper limit device
With brightness memory function
| Eyepiece: | SWH10X-H (Ã23mm) |
| Optical Magnification: | 50X~500X (up to 1000X optional) |
| Illumination: | 10W LED, transmitted and reflected |
| Stage: | Double layer, 101Ã101mm glass, 75Ã50mm travel |
| Net Weight: | 25kg |
The INSIZE 5110-M900 Metallurgical Microscope (Standard Type) is a robust, high-performance optical instrument engineered for materials science, metallurgy, and quality control applications. Featuring an infinite chromatic aberration correction optical system, it guarantees flat fields, high contrast, and exceptional image clarity, which is essential for analyzing the microstructure of opaque materials.
Designed with user comfort in mind, the microscope includes a three-way observation tube and a front low-hand position coaxial focus mechanism with an anti-sliding elastic device, ensuring precise control and preventing sample damage. The system is equipped with both transmitted and reflected 10W adjustable LED illumination featuring a brightness memory function for consistent lighting across sessions. It comes with brightfield objectives (5X, 10X, 20X, 50X) and a trinocular port for easy camera attachment. With its 0.5X camera adapter, polarizer/analyzer, and sturdy mechanical stage, it provides a complete, turnkey solution for materials inspection and analysis.
INSIZE 5110-M900 Metallurgical Microscope – Standard Type Brightfield Inspection
Achieve precise materials analysis with the INSIZE 5110-M900 Metallurgical Microscope. Designed for quality control labs, manufacturing facilities, and educational institutions, this "Standard Type" upright microscope combines an infinite optical system with robust mechanical construction to deliver clear, high-contrast images of metal structures, coatings, and semiconductor components.
Key Features & Benefits:
-
Infinite Chromatic Aberration Correction: The advanced optical system ensures superior image flatness, edge-to-edge sharpness, and accurate color reproduction, critical for evaluating grain structures and inclusions.
-
Ergonomic & Safe Operation: Features a front-mounted coaxial coarse and fine focus mechanism (1µm graduation) with a built-in elastic device to prevent the stage from dropping.
-
Brightness Memory Function: The 10W LED (both transmitted and reflected) features a brightness memory function, automatically restoring your preferred light intensity when turned on.
-
Trinocular Observation: The trinocular head (100:0 split) allows for direct connection of digital cameras while maintaining a clear visual field through the WF10X eyepieces.
-
Advanced Contrast Techniques: Includes a polarizer and analyzer, plus a slot for optional DIC or darkfield (not included on standard), expanding your analytical capabilities.
-
Complete Turnkey System: Comes standard with a 0.5X camera adapter, anti-dust cover, and polarizer/analyzer, ready for your imaging needs.
